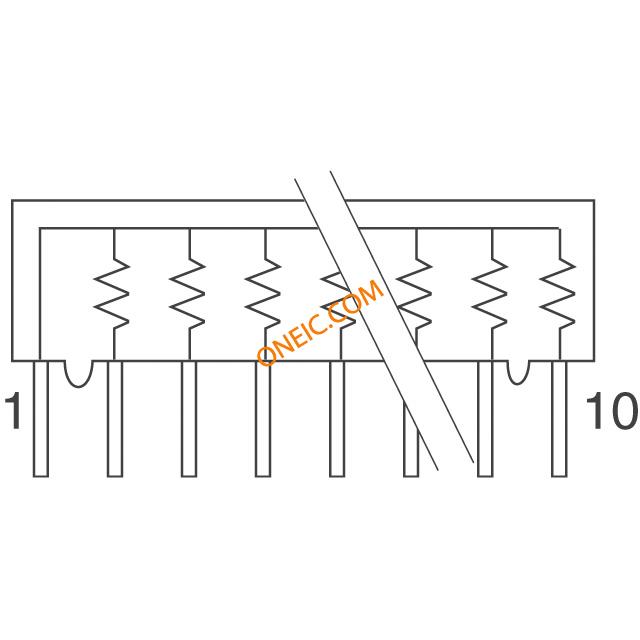

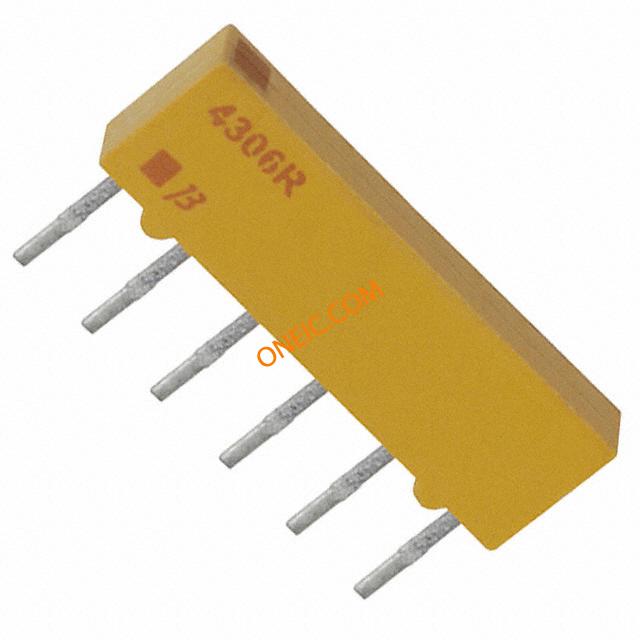

Res Thick Film NET 8.2KΩ 2% 0.75W3/4W 100ppm/℃ BUS Molded 6Pin SIP Pin Thru-Hole
8.2k Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 6-SIP
得捷:
RES ARRAY 5 RES 8.2K OHM 6SIP
立创商城:
8.2kΩ ±2%
艾睿:
Res Thick Film NET 8.2K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
Allied Electronics:
4306R-101-822
Chip1Stop:
Res Thick Film NET 8.2K Ohm 2% 0.75W3/4W 100ppm/ C BUS Molded 6-Pin SIP Pin Thru-Hole
Verical:
Res Thick Film NET 8.2K Ohm 2% 0.75W3/4W ±100ppm/C BUS Molded 6-Pin SIP Pin Thru-Hole
MASTER:
Res Thick Film NET 8.2K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 8.2K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
触点数 6
额定电压DC 100 V
容差 ±2 %
额定功率 0.75 W
针脚数 6
电阻 8.2 kΩ
阻值偏差 ±2 %
安装方式 Through Hole
引脚数 6
封装 SIP-6

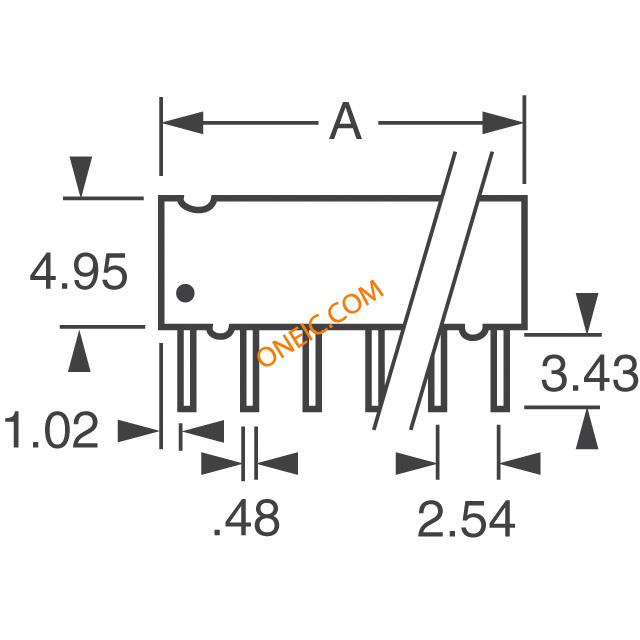

长度 14.83 mm

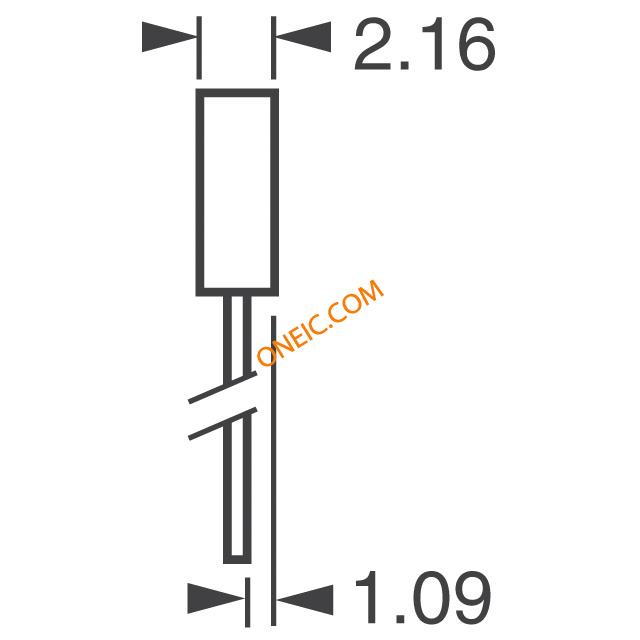

宽度 2.16 mm
高度 4.95 mm
封装 SIP-6
厚度 2.16 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 NRND: Not recommended for new designs.
包装方式 Tube
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8533210050
