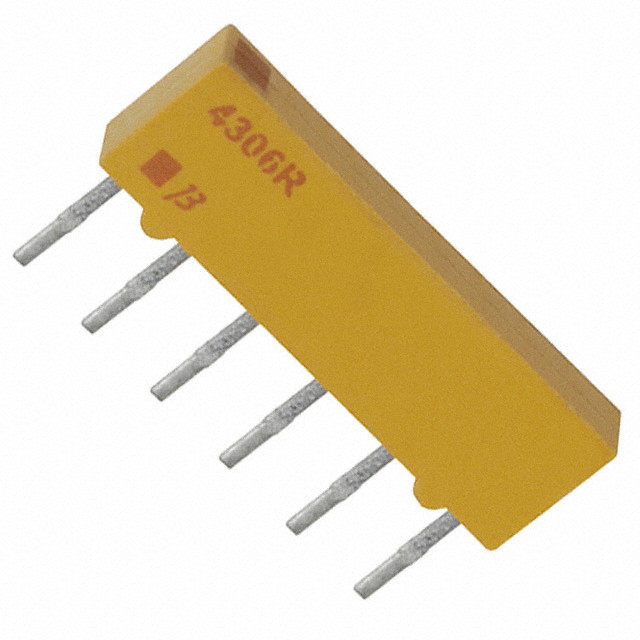

Res Thick Film NET 120Ω 2% 0.75W3/4W 100ppm/℃ ISOL Molded 6Pin SIP Pin Thru-Hole
120 Ohm ±2% 300mW Power Per Element Isolated Resistor Network/Array ±100ppm/°C 6-SIP
得捷:
RES ARRAY 3 RES 120 OHM 6SIP
立创商城:
120Ω ±2%
贸泽:
Resistor Networks & Arrays 6 PIN ISO. 120 OHM
艾睿:
Res Thick Film NET 120 Ohm 2% 0.75W3/4W ±100ppm/°C ISOL Molded 6-Pin SIP Pin Thru-Hole
Allied Electronics:
4306R-102-121
Chip1Stop:
Res Thick Film NET 120 Ohm 2% 0.75W3/4W 100ppm/ C ISOL Molded 6-Pin SIP Pin Thru-Hole
MASTER:
Res Thick Film NET 120 Ohm 2% 0.75W3/4W ±100ppm/°C ISOL Molded 6-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 120 Ohm 2% 0.75W3/4W ±100ppm/°C ISOL Molded 6-Pin SIP Pin Thru-Hole
触点数 6
额定电压DC 100 V
容差 ±2 %
额定功率 0.75 W
针脚数 6
电阻 120 Ω
阻值偏差 ±2 %
安装方式 Through Hole
引脚数 6
封装 SIP-6

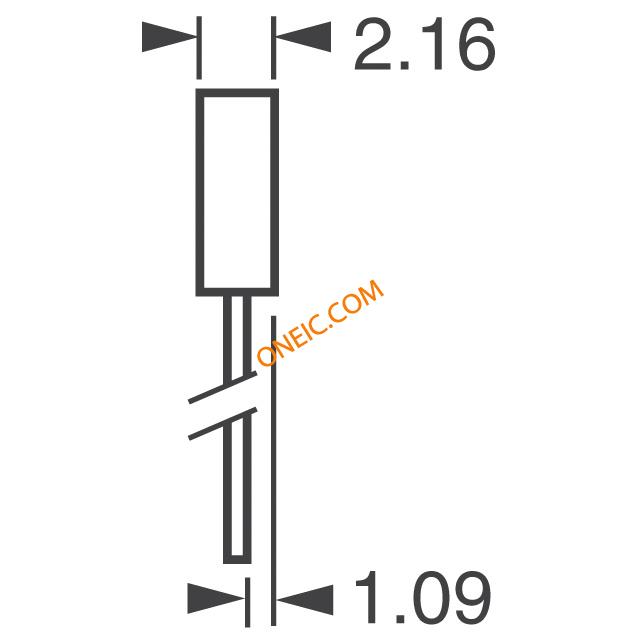

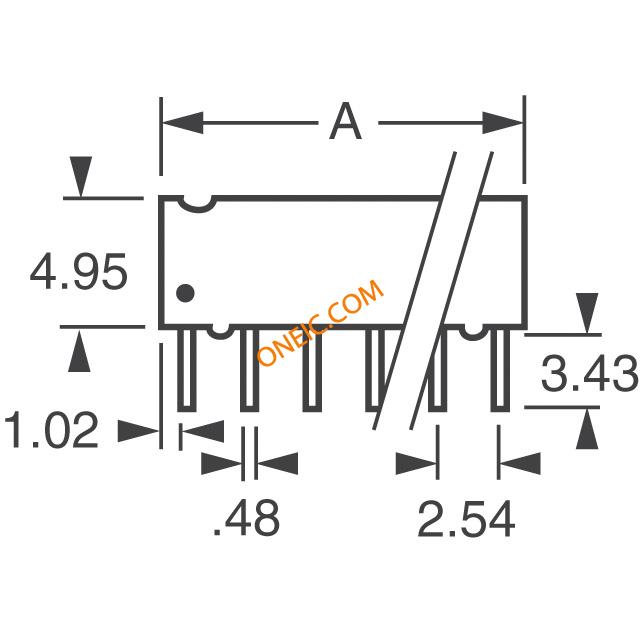

长度 14.83 mm
宽度 2.16 mm
高度 4.95 mm
封装 SIP-6
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 NRND: Not recommended for new designs.
包装方式 Bulk
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8533210050
