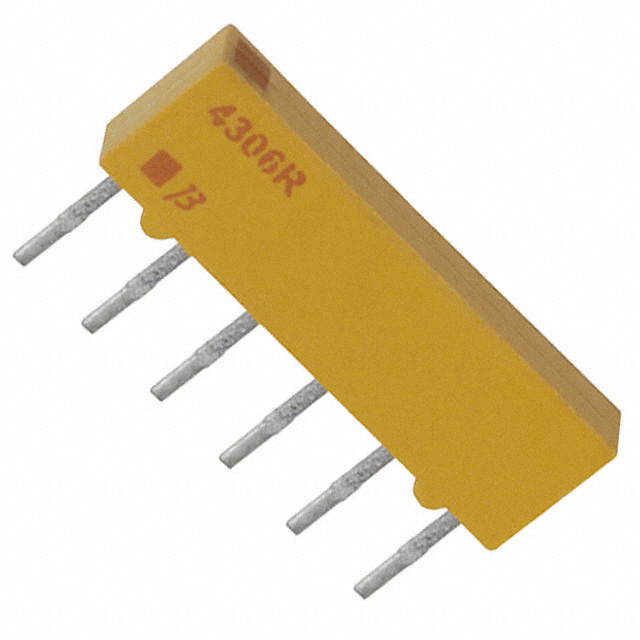

Res Thick Film NET 5.6KΩ 2% 0.75W3/4W ±100ppm/℃ BUS Molded 6Pin SIP Pin Thru-Hole
5.6k Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 6-SIP
立创商城:
5.6kΩ ±2%
得捷:
RES ARRAY 5 RES 5.6K OHM 6SIP
艾睿:
Res Thick Film NET 5.6K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
Allied Electronics:
4306R-101-562
Verical:
Res Thick Film NET 5.6K Ohm 2% 0.75W3/4W ±100ppm/C BUS Molded 6-Pin SIP Pin Thru-Hole
MASTER:
Res Thick Film NET 5.6K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 5.6K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
触点数 6
额定电压DC 100 V
容差 ±2 %
额定功率 0.75 W
电阻 5.6 KΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 6
封装 SIP-6
长度 14.8 mm
宽度 2.16 mm
高度 4.95 mm
封装 SIP-6
厚度 2.16 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8533210050
