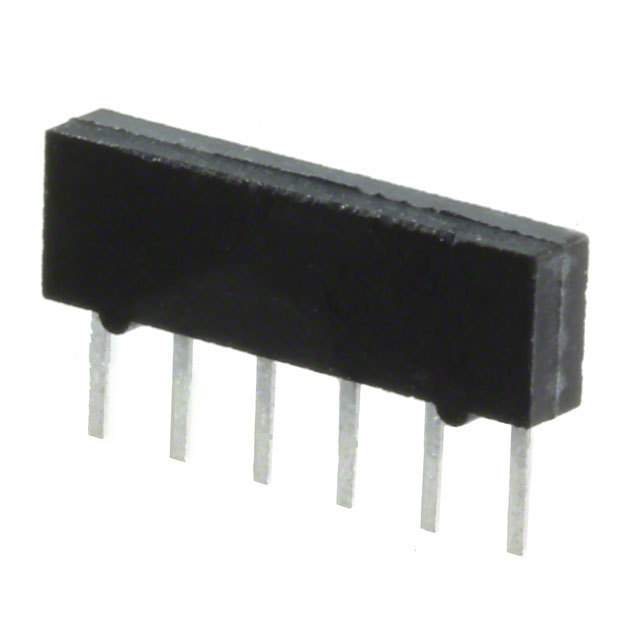

Res Thick Film NET 10KΩ 2% 0.75W3/4W ±100ppm/℃ ISOL Molded 6Pin SIP Pin Thru-Hole
10k Ohm ±2% 300mW Power Per Element Isolated Resistor Network/Array ±100ppm/°C 6-SIP
立创商城:
10kΩ ±2%
得捷:
RES ARRAY 3 RES 10K OHM 6SIP
艾睿:

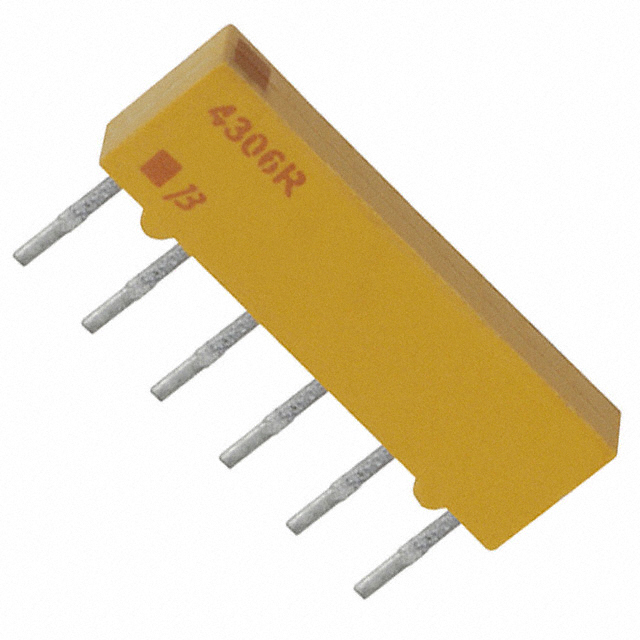

Conserve space and power by adopting this 4306R-102-103 resistor array from Bourns, allowing multiple configurations of resistors to be downsized into an IC. This product&s;s 3 resistors have a value of 10K Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.3 W. It has 6 terminals. This part has an operating temperature of -55 to 125 °C. The 4306R-102-103 part has a pin termination style. This device is made with thick film technology. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep.
Allied Electronics:
4306R-102-103
Electro Sonic:
Res Thick Film NET 10K Ohm 2% 0.75W3/4W ±100ppm/°C ISOL Molded 6-Pin SIP Pin Thru-Hole
