4306R-101-271LF

Res Thick Film NET 270Ω 2% 0.75W3/4W ±100ppm/℃ BUS Molded 6Pin SIP Pin Thru-Hole

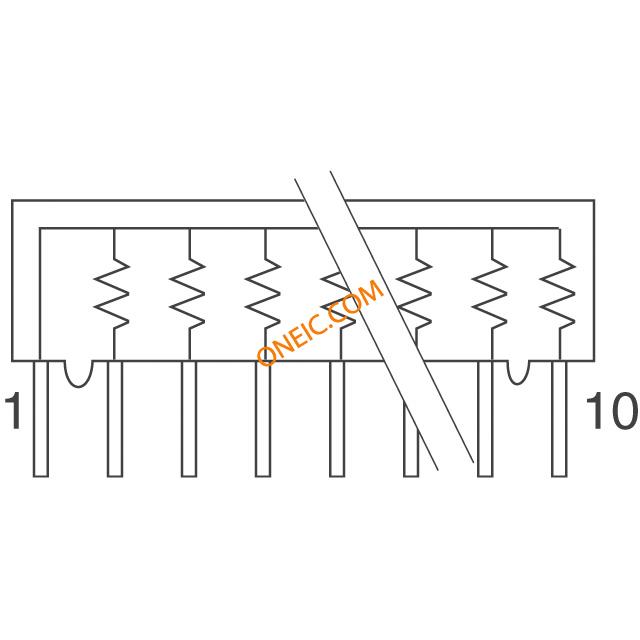

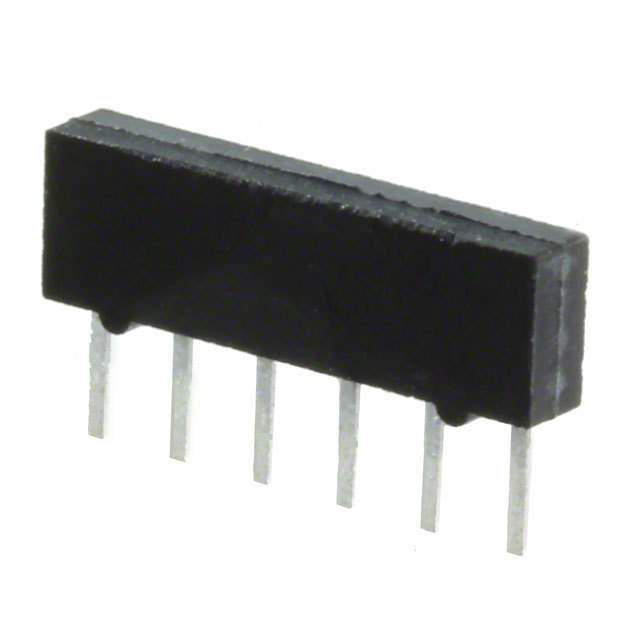

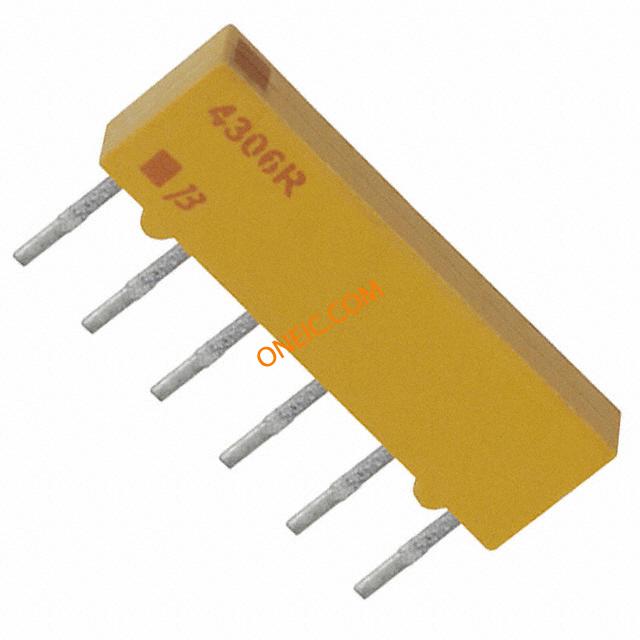

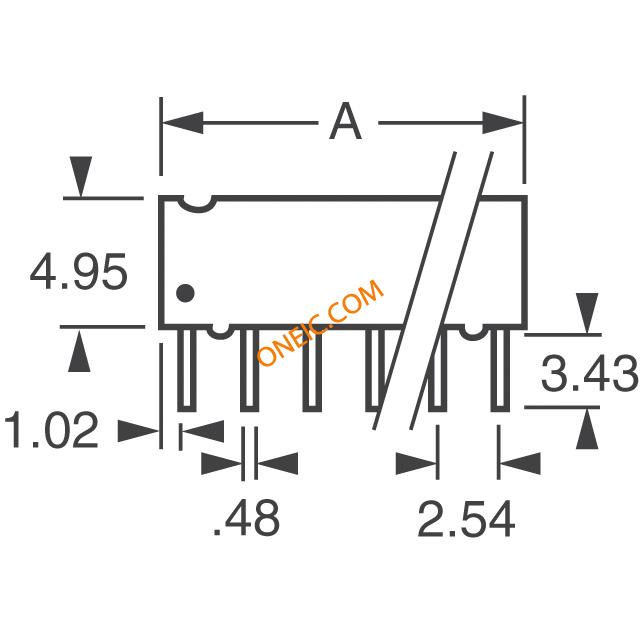

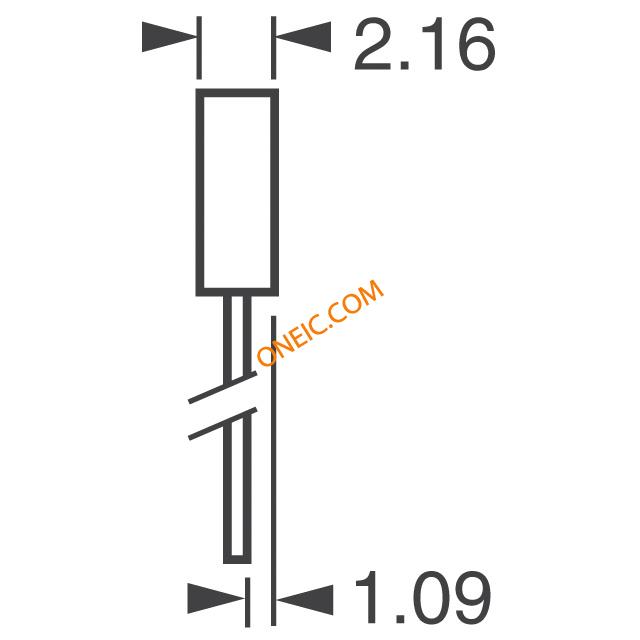

This resistor array by Bourns packs multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. This product"s 5 resistors have a value of 270 Ohm. It has 6 terminals. This device utilizes thick film technology. It has a tolerance of 2%. This part has an operating temperature of -55 to 125 °C. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep. The 4306R-101-271LF part has a pin termination style. This product"s terminal pitch is 2.54 mm.
