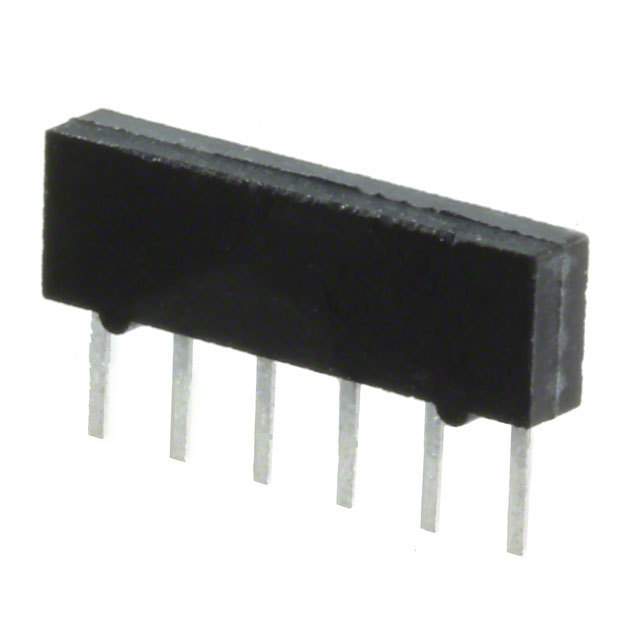

4306R-101-471LF

BOURNS  4306R-101-471LF  电阻阵列, 厚膜, 470Ω, 100V, 2+/-%

**Features:

**

* Low Profile Provides Compatibility with DIPs

* Compatible with Automatic Insertion Equipment

* Superior Package Integrity

* Marking on Contrasting Background for Permanent Identification

立创商城:
470Ω ±2%

e络盟:
电阻阵列, 厚膜, 470Ω, 100V, 2+/-%

艾睿:
Pack multiple resistors into a single chip with this 4306R-101-471LF resistor array from Bourns. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 5 resistors have a value of 470 Ohm. It has 6 terminals. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm. This part has an operating temperature of -55 to 125 °C. The 4306R-101-471LF part has a pin termination style. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep. This device is made with thick film technology.

Allied Electronics:
Resistor, Thk Filmmolded SIP, 470 Ohms, 2%, 100V, 0.75W @ 70DegC, Bussed

Chip1Stop:
Res Thick Film NET 470 Ohm 2% 0.75W3/4W ±100ppm/℃ BUS Molded 6-Pin SIP Pin Thru-Hole

Verical:
Res Thick Film NET 470 Ohm 2% 0.75W3/4W ±100ppm/C BUS Molded 6-Pin SIP Pin Thru-Hole

Newark:
# BOURNS  4306R-101-471LF  Fixed Network Resistor, Low Profile, 470 ohm, 100 V, 6 Elements, Bussed, SIP, 200 mW

MASTER:
Res Thick Film NET 470 Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole

Electro Sonic:
Res Thick Film NET 470 Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
