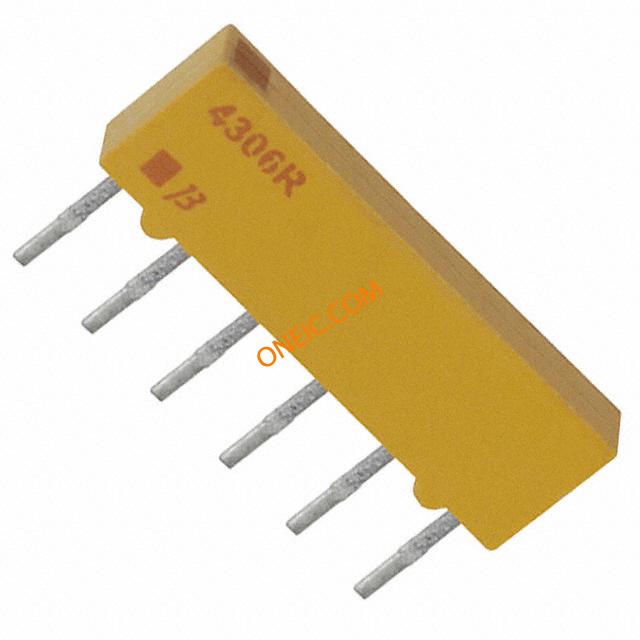

4306R-101-333LF

Res Thick Film NET 33KΩ 2% 0.75W3/4W ±100ppm/℃ BUS Molded 6Pin SIP Pin Thru-Hole

33k Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 6-SIP

艾睿:

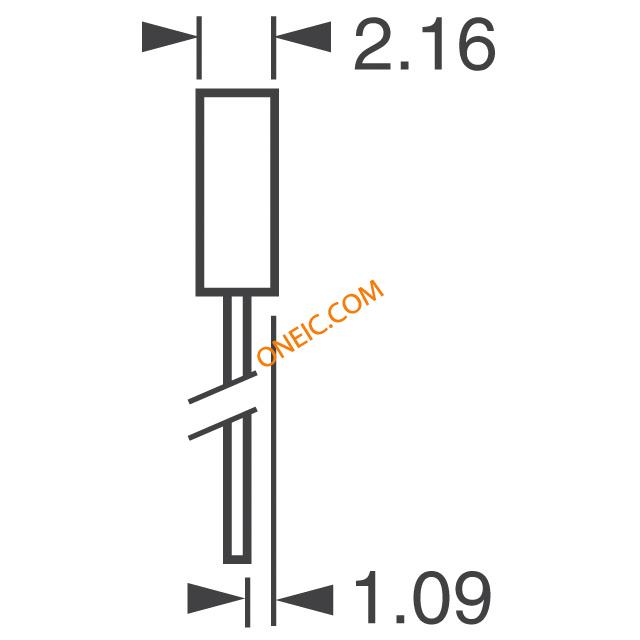

By combining multiple resistors into a single chip, the 4306R-101-333LF resistor array, developed by Bourns, can help you save space and power in your circuit design. Its temperature coefficient is ±100 ppm/°C. This product&s;s 5 resistors have a value of 33K Ohm. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. It has 6 terminals. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm. This device utilizes thick film technology. The 4306R-101-333LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep.

Allied Electronics:
4306R-101-333LF

安富利:
Res Thick Film NET 33K Ohm 2% 3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole

Chip1Stop:
Res Thick Film NET 33K Ohm 2% 0.75W3/4W ±100ppm/℃ BUS Molded 6-Pin SIP Pin Thru-Hole

Electro Sonic:
Res Thick Film NET 33K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
