4306R-102-223LF

电阻器网络与阵列 6pin 22Kohms Isolated Low Profile

22k 欧姆 ±2% 300mW 每元件功率 隔离 器网络，阵列 ±100ppm/°C 6-SIP

得捷:
RES ARRAY 3 RES 22K OHM 6SIP

贸泽:
电阻器网络与阵列 6pin 22Kohms Isolated Low Profile

艾睿:

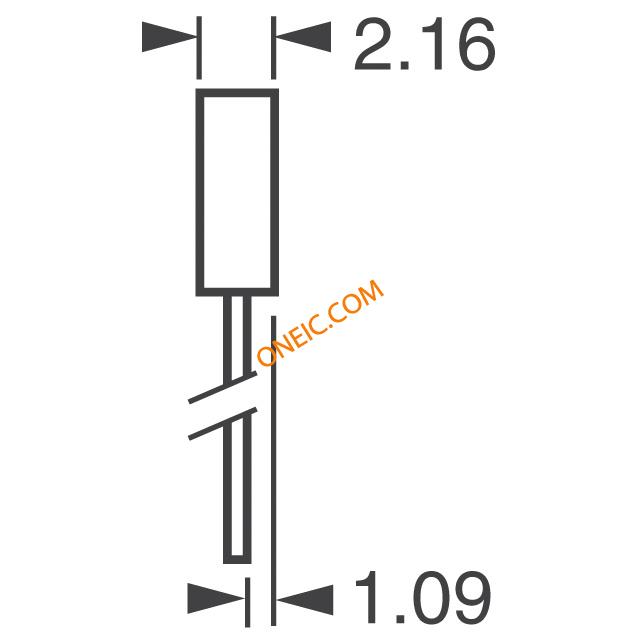

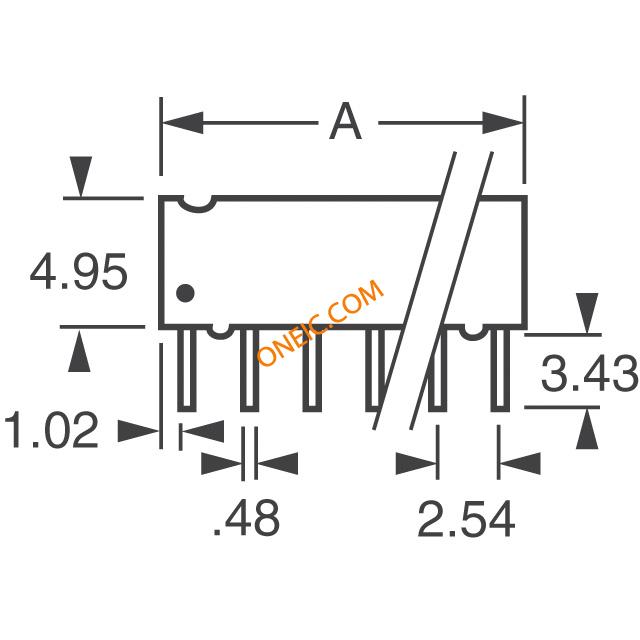

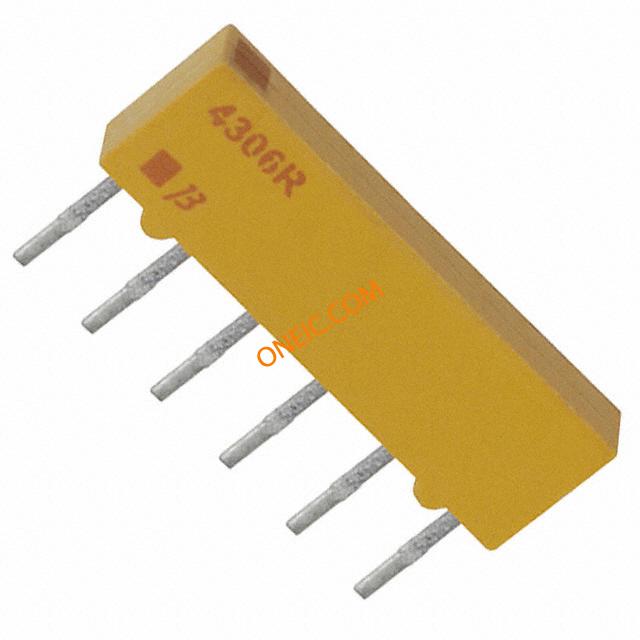

Create more space in your circuit design by using this 4306R-102-223LF resistor array developed by Bourns that packs multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.3 W. This product&s;s 3 resistors have a value of 22K Ohm. It has 6 terminals. The 4306R-102-223LF part has a pin termination style. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm. This part has an operating temperature of -55 to 125 °C. This device is made with thick film technology. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep.

Allied Electronics:
4306R-102-223LF

安富利:
Res Thick Film NET 22K Ohm 2% 3/4W ±100ppm/°C ISOL Molded 6-Pin SIP Pin Thru-Hole

Chip1Stop:
Res Thick Film NET 22K Ohm 2% 0.75W3/4W ±100ppm/℃ ISOL Molded 6-Pin SIP Pin Thru-Hole

Verical:
Res Thick Film NET 22K Ohm 2% 0.75W3/4W ±100ppm/C ISOL Molded 6-Pin SIP Pin Thru-Hole

MASTER:
Res Thick Film NET 22K Ohm 2% 0.75W3/4W ±100ppm/°C ISOL Molded 6-Pin SIP Pin Thru-Hole

Electro Sonic:
Res Thick Film NET 22K Ohm 2% 0.75W3/4W ±100ppm/°C ISOL Molded 6-Pin SIP Pin Thru-Hole
