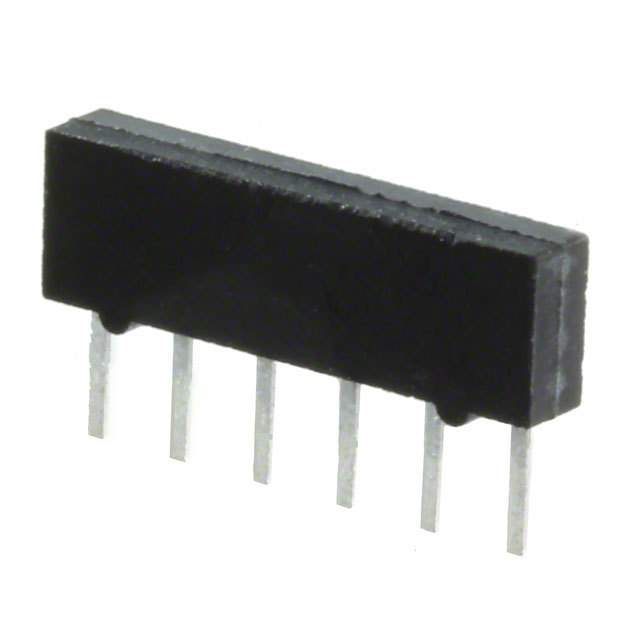

4306R-101-153LF

Res Thick Film NET 15KΩ 2% 0.75W3/4W 100ppm/℃ BUS Molded 6Pin SIP Pin Thru-Hole

Downsize multiple resistors onto a single chip with the resistor array, developed by Bourns. This product"s 5 resistors have a value of 15K Ohm. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. It has 6 terminals. This part has an operating temperature of -55 to 125 °C. This product"s terminal pitch is 2.54 mm. The 4306R-101-153LF part has a pin termination style. This device is made with thick film technology. It has a tolerance of 2%. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep.
