4306R-101-332

Res Thick Film NET 3.3KΩ 2% 0.75W3/4W 100ppm/℃ BUS Molded 6Pin SIP Pin Thru-Hole

3.3k Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 6-SIP

得捷:
RES ARRAY 5 RES 3.3K OHM 6SIP

艾睿:

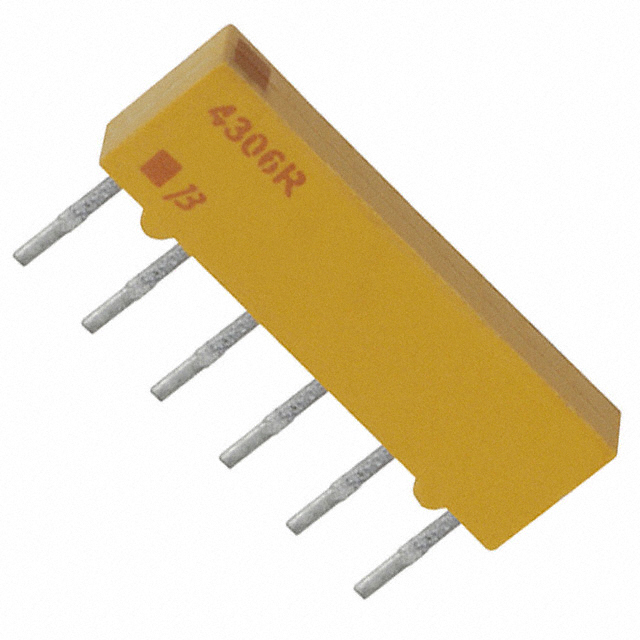

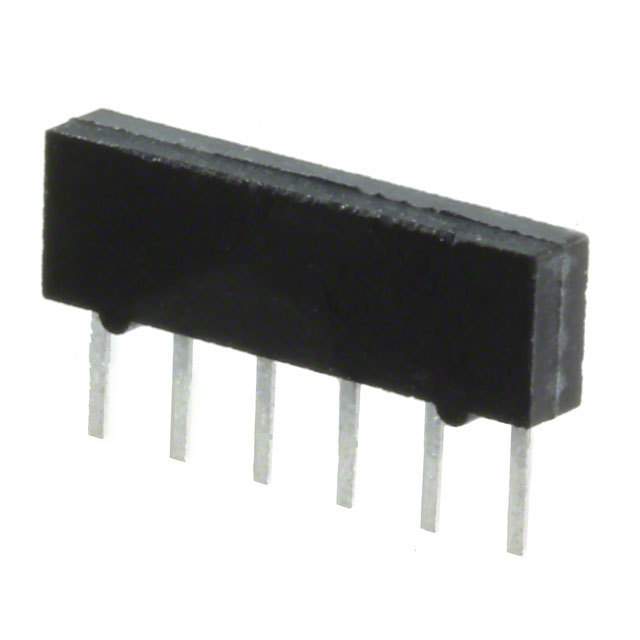

Pack multiple resistors into a single chip with this 4306R-101-332 resistor array from Bourns. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 5 resistors have a value of 3.3K Ohm. It has 6 terminals. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep. It has a tolerance of 2%. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm. The 4306R-101-332 part has a pin termination style. This device is made with thick film technology.

Allied Electronics:
4306R-101-332

Chip1Stop:
Res Thick Film NET 3.3K Ohm 2% 0.75W3/4W 100ppm/ C BUS Molded 6-Pin SIP Pin Thru-Hole

Verical:
Res Thick Film NET 3.3K Ohm 2% 0.75W3/4W ±100ppm/C BUS Molded 6-Pin SIP Pin Thru-Hole

Newark:
# BOURNS  4306R-101-332  Fixed Network Resistor, Low Profile, 3.3 kohm, 100 V, 5 Elements, Bussed, SIP, 200 mW

MASTER:
Res Thick Film NET 3.3K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole

Electro Sonic:
Res Thick Film NET 3.3K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
