Res Thick Film NET 100KΩ 2% 2.25W ±100ppm/℃ LADDER Molded 16Pin DIP Pin Thru-Hole
100k，200k 欧姆 ±2% 125mW 每元件功率 R2R 梯形网路 16 器网络，阵列 ±100ppm/°C 16-DIP（0.300"，7.62mm）
立创商城:
100kΩ 200kΩ ±2%
得捷:
RES NTWRK 16 RES MULT OHM 16DIP
艾睿:

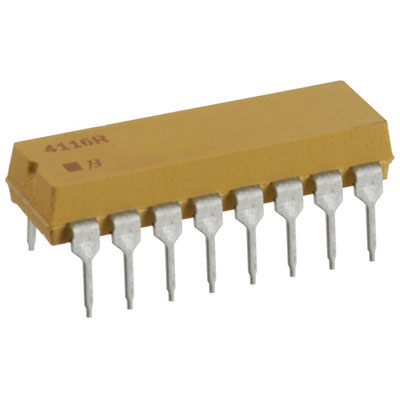

Create more space in your circuit design by using this 4116R-R2R-104LF resistor array developed by Bourns that packs multiple resistors into one IC chip. This dependable part has a power rating of 2.25 W and a power rating per resistor of 0.125 1/8 W. This product&s;s 16 resistors have a value of 100K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 16 terminals. This device utilizes thick film technology. This product is 21.97 mm long, 4.57 mm tall and 7.87 mm deep. It has a tolerance of 2%. The 4116R-R2R-104LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm.
Jameco:
MOLDED DIP,16PIN,LADDER,100K, 2%,LOW,HAZMAT
Chip1Stop:
Res Thick Film NET 100K Ohm 2% 2.25W ±100ppm/℃ LADDER Molded 16-Pin DIP Pin Thru-Hole
Verical:
Res Thick Film NET 100K Ohm 2% 2.25W ±100ppm/C LADDER Molded 16-Pin DIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 100K Ohm 2% 2.25W ±100ppm/°C LADDER Molded 16-Pin DIP Pin Thru-Hole
