4306R-101-182

Res Thick Film NET 1.8KΩ 2% 0.75W3/4W ±100ppm/℃ BUS Molded 6Pin SIP Pin Thru-Hole

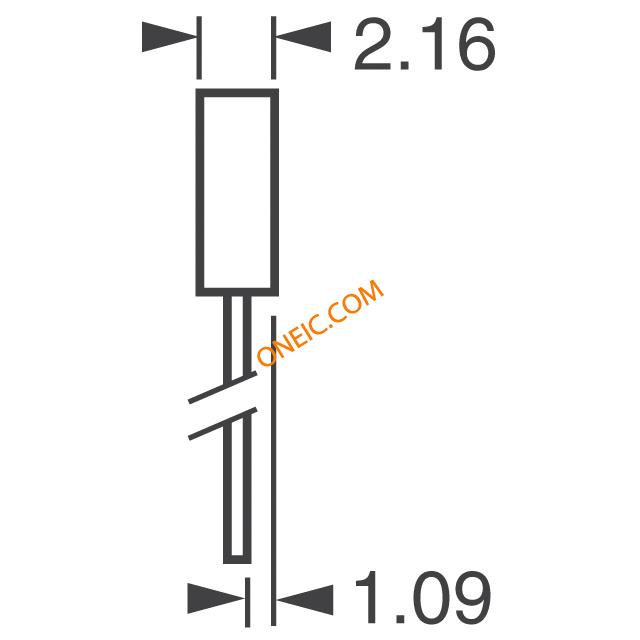

Use this resistor array from Bourns to conserve space by packing multiple resistors into one IC chip. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. This product"s 5 resistors have a value of 1.8K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 6 terminals. This product"s terminal pitch is 2.54 mm. The 4306R-101-182 part has a pin termination style. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep. It has a tolerance of 2%.
