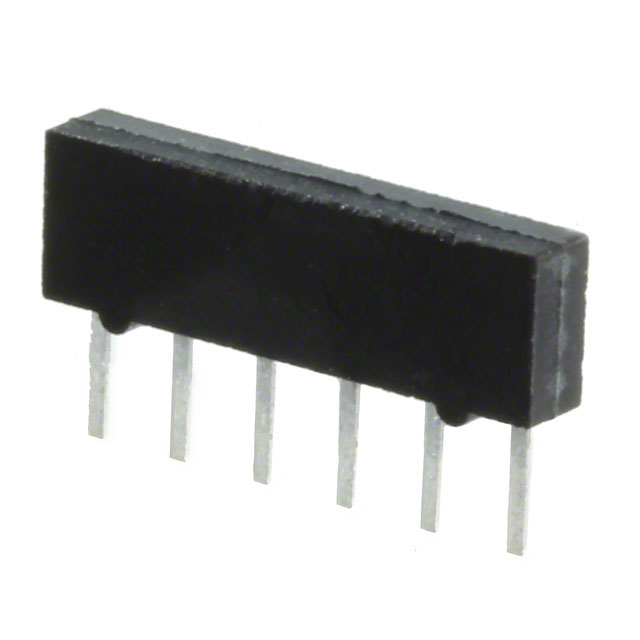

Res Thick Film NET 22KΩ 2% 0.75W3/4W ±100ppm/℃ BUS Molded 6Pin SIP Pin Thru-Hole
If you"re looking to conserve space in your circuit design, then this resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. This product"s 5 resistors have a value of 22K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 6 terminals. This part has an operating temperature of -55 to 125 °C. The 4306R-101-223LF part has a pin termination style. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep. This product"s terminal pitch is 2.54 mm. It has a tolerance of 2%. This device is made with thick film technology.
触点数 6
额定电压DC 100 V
容差 ±2 %
额定功率 0.75 W
电阻 22 kΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 6
封装 SIP-6
长度 14.83 mm
宽度 2.16 mm
高度 4.95 mm
封装 SIP-6
厚度 2.16 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210050
