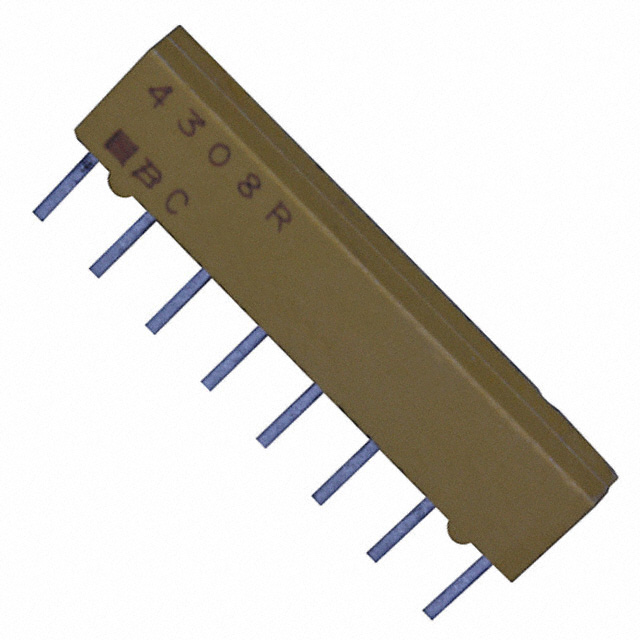

4308R-101-682

Res Thick Film NET 6.8KΩ 2% 1W 100ppm/℃ BUS Molded 8Pin SIP Pin Thru-Hole

6.8k 欧姆 ±2% 200mW 每元件功率 总线式 7 器网络，阵列 ±100ppm/°C 8-SIP

立创商城:
6.8kΩ ±2%

得捷:
RES ARRAY 7 RES 6.8K OHM 8SIP

艾睿:
If you&s;re looking to conserve space in your circuit design, then this 4308R-101-682 resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This product&s;s 7 resistors have a value of 6.8K Ohm. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. It has 8 terminals. This product is 19.92 mm long, 4.95 mm tall and 2.16 mm deep. It has a tolerance of 2%. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm. The 4308R-101-682 part has a pin termination style.

安富利:
Res Thick Film NET 6.8K Ohm 2% 1W ±100ppm/°C BUS Molded 8-Pin SIP Pin Thru-Hole

Chip1Stop:
Res Thick Film NET 6.8K Ohm 2% 1W 100ppm/ C BUS Molded 8-Pin SIP Pin Thru-Hole

Verical:
Res Thick Film NET 6.8K Ohm 2% 1W ±100ppm/C BUS Molded 8-Pin SIP Pin Thru-Hole

MASTER:
Res Thick Film NET 6.8K Ohm 2% 1W ±100ppm/°C BUS Molded 8-Pin SIP Pin Thru-Hole

Electro Sonic:
Res Thick Film NET 6.8K Ohm 2% 1W ±100ppm/°C BUS Molded 8-Pin SIP Pin Thru-Hole
