Res Thick Film NET 68KΩ 2% 2.25W ±100ppm/℃ BUS Molded 16Pin DIP Pin Thru-Hole

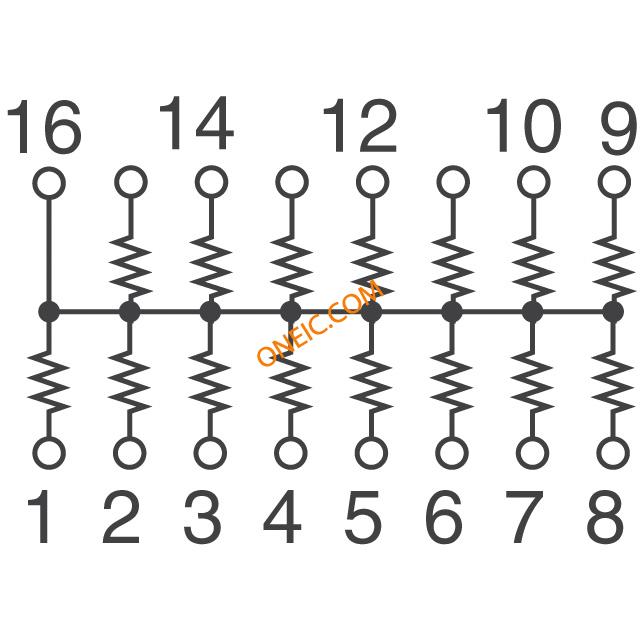

68k Ohm ±2% 125mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 16-DIP 0.300", 7.62mm
立创商城:
68kΩ ±2%
得捷:
RES ARRAY 15 RES 68K OHM 16DIP
贸泽:
Resistor Networks & Arrays 16PIN 68KOHMS BUSSED
艾睿:
Res Thick Film NET 68K Ohm 2% 2.25W
Verical:
Res Thick Film NET 68K Ohm 2% 2.25W ±100ppm/C BUS Molded 16-Pin DIP Pin Thru-Hole
MASTER:
Res Thick Film NET 68K Ohm 2% 2.25W ±100ppm/°C BUS Molded 16-Pin DIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 68K Ohm 2% 2.25W ±100ppm/°C BUS Molded 16-Pin DIP Pin Thru-Hole
触点数 16
额定电压DC 100 V
容差 ±2 %
额定功率 2.25 W
针脚数 16
电阻 68 kΩ
阻值偏差 ±2 %
安装方式 Through Hole
引脚数 16
封装 DIP-16

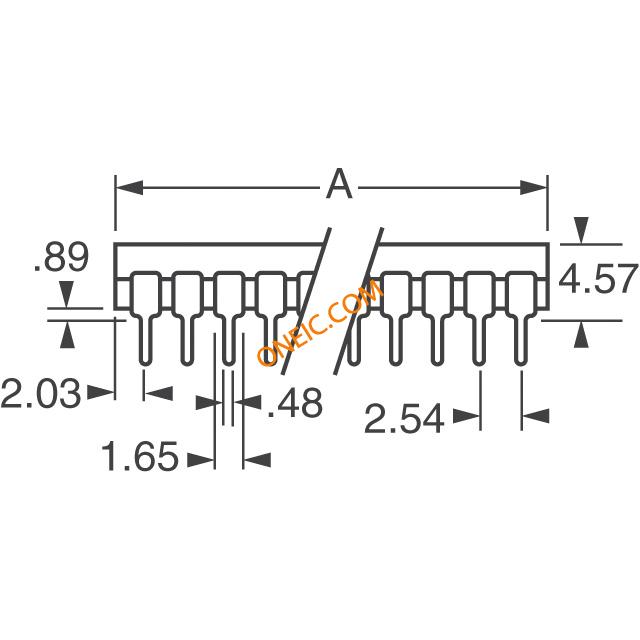

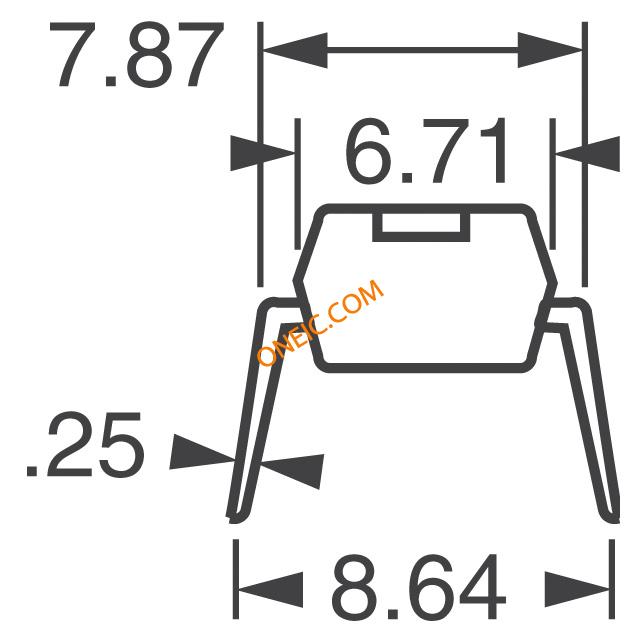

长度 27.05 mm
宽度 4.57 mm
高度 4.57 mm
封装 DIP-16
厚度 4.57 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Not Recommended for New Designs
包装方式 Tube
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8533210060
