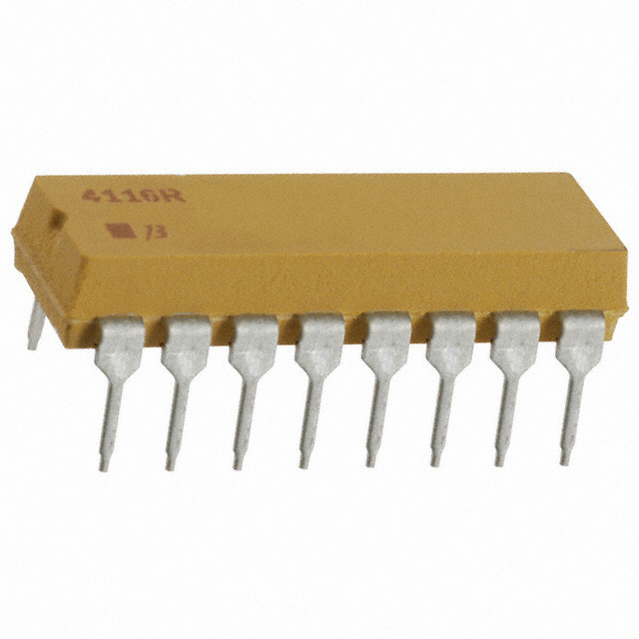

Res Thick Film NET 2.2KΩ 2% 2.25W ±100ppm/℃ ISOL Molded 16Pin DIP Pin Thru-Hole
2.2k Ohm ±2% 250mW Power Per Element Isolated Resistor Network/Array ±100ppm/°C 16-DIP 0.300", 7.62mm
立创商城:
2.2kΩ ±2%
得捷:
RES ARRAY 8 RES 2.2K OHM 16DIP
艾睿:
Create more space in your circuit design by using this 4116R-1-222 resistor array developed by Bourns that packs multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This product&s;s 8 resistors have a value of 2.2K Ohm. This dependable part has a power rating of 2.25 W and a power rating per resistor of 0.25 1/4 W. It has 16 terminals. This device is made with thick film technology. It has a tolerance of 2%. This part has an operating temperature of -55 to 125 °C. The 4116R-1-222 part has a pin termination style. This product is 21.97 mm long, 4.57 mm tall and 7.87 mm deep. This product&s;s terminal pitch is 2.54 mm.
Chip1Stop:
Res Thick Film NET 2.2K Ohm 2% 2.25W ±100ppm/℃ ISOL Molded 16-Pin DIP Pin Thru-Hole
Verical:
Res Thick Film NET 2.2K Ohm 2% 2.25W ±100ppm/C ISOL Molded 16-Pin DIP Pin Thru-Hole
Newark:
# BOURNS 4116R-1-222 Fixed Network Resistor, Thick Film, 2.2 kohm, 100 V, 8 Elements, Isolated, DIP, 250 mW
MASTER:
Res Thick Film NET 2.2K Ohm 2% 2.25W ±100ppm/°C ISOL Molded 16-Pin DIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 2.2K Ohm 2% 2.25W ±100ppm/°C ISOL Molded 16-Pin DIP Pin Thru-Hole
触点数 16
额定电压DC 100 V
容差 ±2 %
额定功率 2.25 W
电阻 2.2 kΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
长度 21.97 mm
宽度 7.87 mm
高度 4.57 mm
封装 DIP-16
厚度 4.57 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210060
