Res Thick Film NET 8.2KΩ 2% 2.25W ±100ppm/℃ BUS Molded 16Pin DIP Pin Thru-Hole
8.2k Ohm ±2% 125mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 16-DIP 0.300", 7.62mm
得捷:

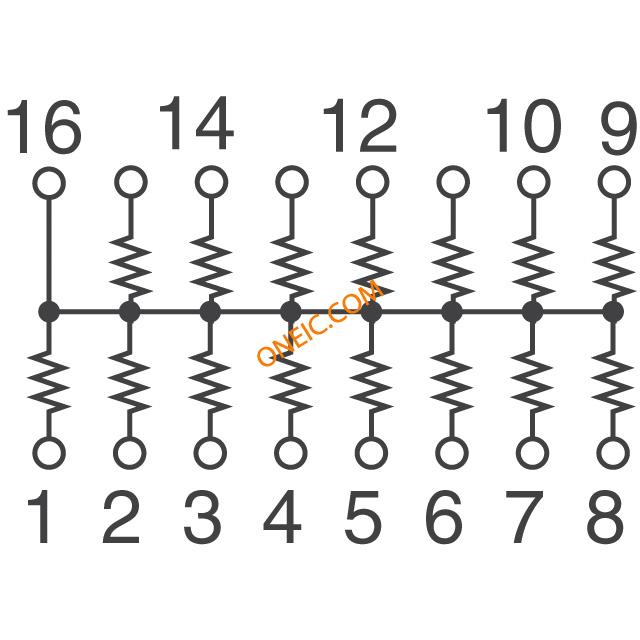

RES ARRAY 15 RES 8.2K OHM 16DIP
立创商城:
8.2kΩ ±2%
艾睿:
Res Thick Film NET 8.2K Ohm 2% 2.25W
Newark:

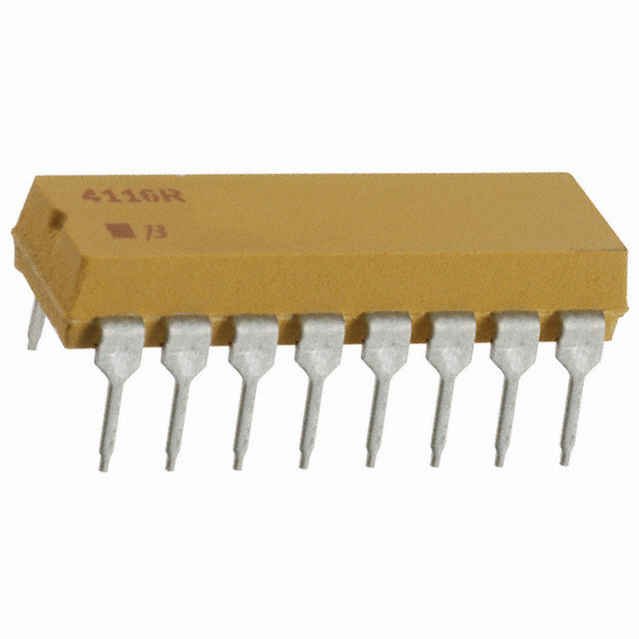

# BOURNS 4116R-2-822 Fixed Network Resistor, Thick Film, 8.2 kohm, 100 V, 15 Elements, Bussed, DIP, 125 mW
MASTER:
Res Thick Film NET 8.2K Ohm 2% 2.25W ±100ppm/°C BUS Molded 16-Pin DIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 8.2K Ohm 2% 2.25W ±100ppm/°C BUS Molded 16-Pin DIP Pin Thru-Hole
触点数 16
额定电压DC 100 V
容差 ±2 %
额定功率 2.25 W
针脚数 16
电阻 8.2 kΩ
阻值偏差 ±2 %
额定电压 100 V
安装方式 Through Hole
引脚数 16
封装 DIP-16

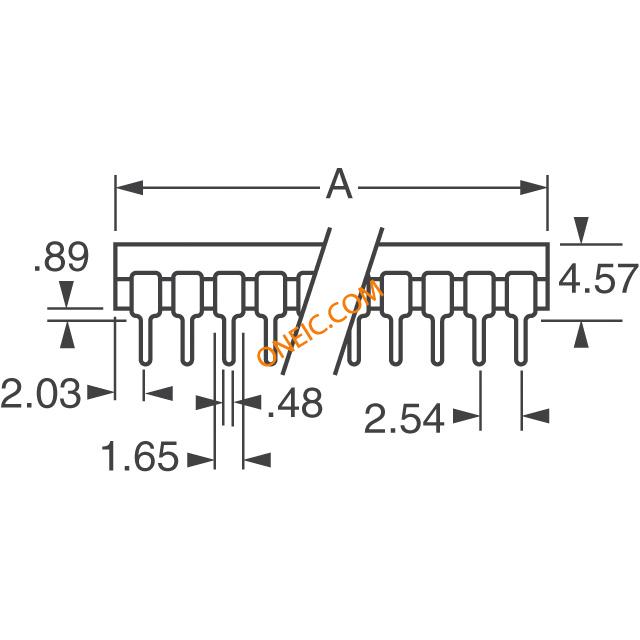

长度 22.0 mm

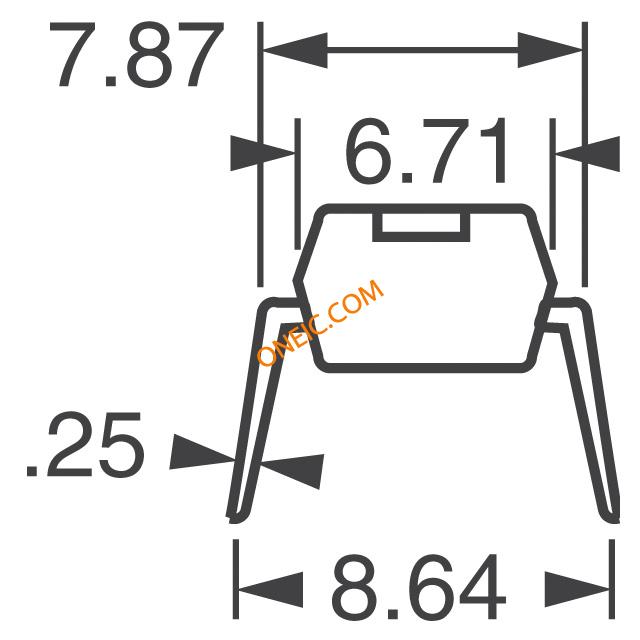

宽度 7.87 mm
高度 4.57 mm
封装 DIP-16
厚度 4.57 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210060
