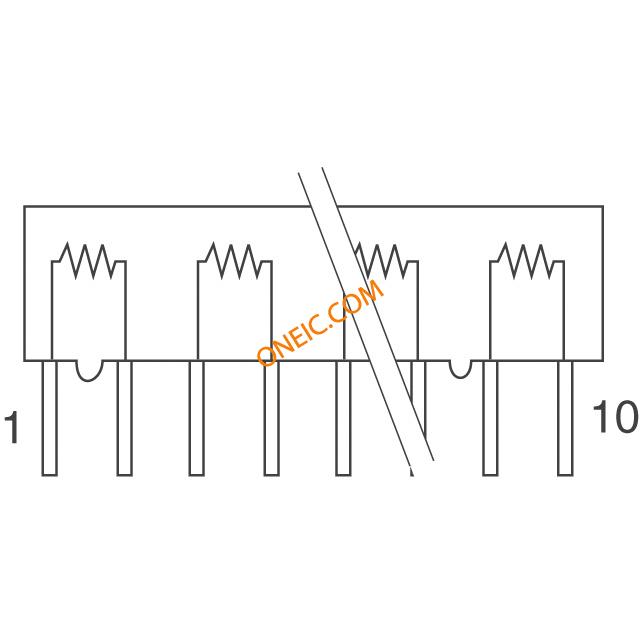

Res Thick Film NET 820Ω 2% 1W 100ppm/℃ ISOL Molded 8Pin SIP Pin Thru-Hole
820 欧姆 ±2% 300mW 每元件功率 隔离 4 器网络，阵列 ±100ppm/°C 8-SIP
立创商城:
820Ω ±2%
得捷:
RES ARRAY 4 RES 820 OHM 8SIP
艾睿:
Res Thick Film NET 820 Ohm 2% 1W ±100ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole
Allied Electronics:
4308R-102-821
Chip1Stop:
Res Thick Film NET 820 Ohm 2% 1W 100ppm/ C ISOL Molded 8-Pin SIP Pin Thru-Hole
Verical:
Res Thick Film NET 820 Ohm 2% 1W ±100ppm/C ISOL Molded 8-Pin SIP Pin Thru-Hole
MASTER:
Res Thick Film NET 820 Ohm 2% 1W ±100ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 820 Ohm 2% 1W ±100ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole
触点数 8
额定电压DC 100 V
容差 ±2 %
额定功率 1 W
针脚数 8
电阻 820 Ω
阻值偏差 ±2 %
额定电压 100 V
安装方式 Through Hole
引脚数 8
封装 SIP-8
长度 19.92 mm
宽度 2.16 mm
高度 4.95 mm
封装 SIP-8
厚度 2.16 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 NRND: Not recommended for new designs.
包装方式 Bulk
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8533210050
