Res Thick Film NET 150Ω 2% 1W 100ppm/℃ BUS Molded 8Pin SIP Pin Thru-Hole
150 欧姆 ±2% 200mW 每元件功率 总线式 7 器网络，阵列 ±100ppm/°C 8-SIP
立创商城:
150Ω ±2%
艾睿:

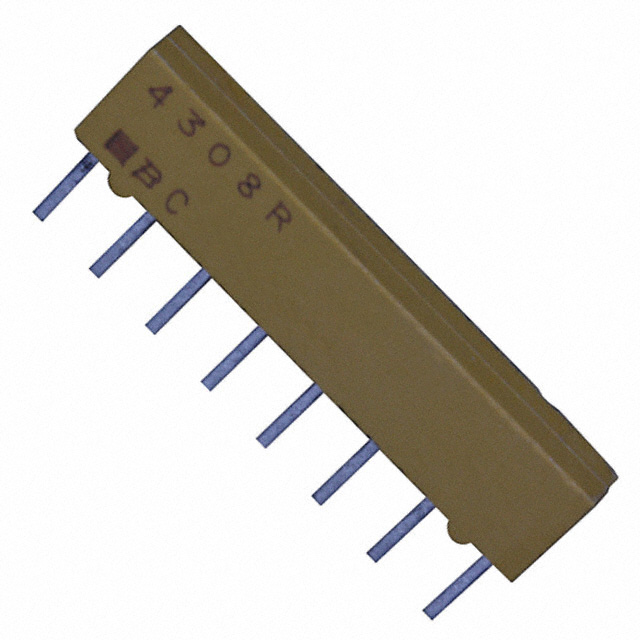

Looking to save space and power in your circuit design? The 4308R-101-151LF resistor array from Bourns gives you a solution by combining multiple resistors into a single chip. This product&s;s 7 resistors have a value of 150 Ohm. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. It has 8 terminals. The 4308R-101-151LF part has a pin termination style. This product is 19.92 mm long, 4.95 mm tall and 2.16 mm deep. This product&s;s terminal pitch is 2.54 mm. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%.
安富利:
Res Thick Film NET 150 Ohm 2% 1W ±100ppm/°C BUS Molded 8-Pin SIP Pin Thru-Hole
Chip1Stop:
Res Thick Film NET 150 Ohm 2% 1W 100ppm/ C BUS Molded 8-Pin SIP Pin Thru-Hole
Verical:
Res Thick Film NET 150 Ohm 2% 1W ±100ppm/C BUS Molded 8-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 150 Ohm 2% 1W ±100ppm/°C BUS Molded 8-Pin SIP Pin Thru-Hole
Win Source:
RES ARRAY 7 RES 150 OHM 8SIP / 150 Ohm ±2% 200mW Power Per Element Bussed 7 Resistor Network/Array ±100ppm/°C 8-SIP
