4116R-2-391LF

Res Thick Film NET 390Ω 2% 2.25W 100ppm/℃ BUS Molded 16Pin DIP Pin Thru-Hole

390 欧姆 ±2% 125mW 每元件功率 总线式 15 器网络，阵列 ±100ppm/°C 16-DIP（0.300"，7.62mm）

得捷:
RES ARRAY 15 RES 390 OHM 16DIP

贸泽:
Resistor Networks & Arrays 16pin 390 OHMS Bussed Low Profile

艾睿:

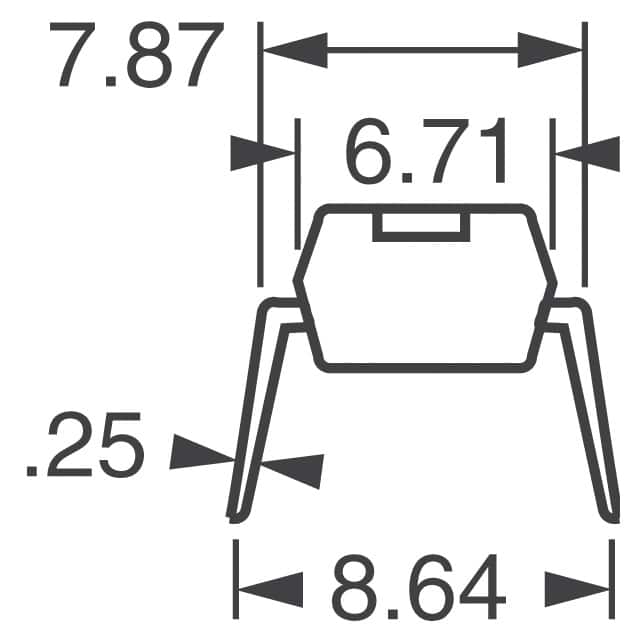

By combining multiple resistors into a single chip, the 4116R-2-391LF resistor array, developed by Bourns, can help you save space and power in your circuit design. This product&s;s 15 resistors have a value of 390 Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 2.25 W and a power rating per resistor of 0.125 1/8 W. It has 16 terminals. It has a tolerance of 2%. This part has an operating temperature of -55 to 125 °C. The 4116R-2-391LF part has a pin termination style. This device utilizes thick film technology. This product&s;s terminal pitch is 2.54 mm. This product is 21.97 mm long, 4.57 mm tall and 7.87 mm deep.

安富利:
Res Thick Film NET 390 Ohm 2% 2.25W ±100ppm/°C BUS Molded 16-Pin DIP Pin Thru-Hole

Chip1Stop:
Res Thick Film NET 390 Ohm 2% 2.25W 100ppm/ C BUS Molded 16-Pin DIP Pin Thru-Hole

Newark:
# BOURNS  4116R-2-391LF  Fixed Network Resistor, Thick Film, 390 ohm, 100 V, 15 Elements, Bussed, DIP, 125 mW

Electro Sonic:
Res Thick Film NET 390 Ohm 2% 2.25W ±100ppm/°C BUS Molded 16-Pin DIP Pin Thru-Hole
