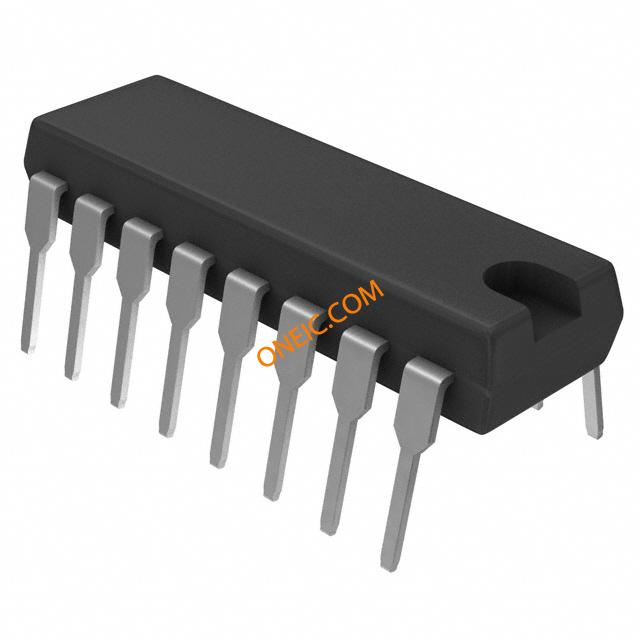

4116R-1-183LF

Res Thick Film NET 18KΩ 2% 2.25W 100ppm/℃ ISOL Molded 16Pin DIP Pin Thru-Hole

This resistor array by Bourns packs multiple resistors into one IC chip. This product"s 8 resistors have a value of 18K Ohm. This dependable part has a power rating of 2.25 W and a power rating per resistor of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. It has 16 terminals. This product is 21.97 mm long, 4.57 mm tall and 7.87 mm deep. It has a tolerance of 2%. The 4116R-1-183LF part has a pin termination style. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. This product"s terminal pitch is 2.54 mm.
