4116R-2-471LF

BOURNS  4116R-2-471LF  电阻网络/排阻, 470欧姆 2% 2.25W 100V

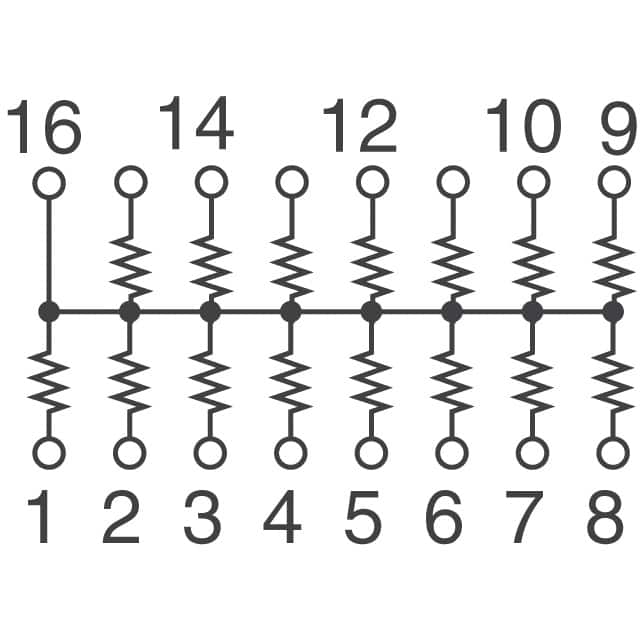

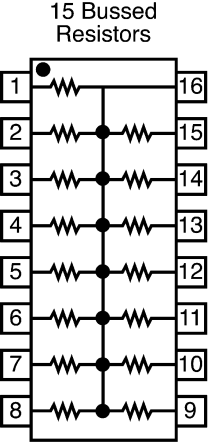

15 总线器

70°C 时功率 | 0.125W（单个），2.25W（总体）

---|---

最大工作电压 | 100V 直流

封装 | DIP16

电阻容差 | ±2 %

温度系数 | ±100 ppm/°C

温度系数记录 | ±50 ppm/°C

工作温度 | -55°C 至 +125°C

欧时:
### 15 总线电阻器70°C 时功率 | 0.125W（单个），2.25W（总体） ---|--- 最大工作电压 | 100V 直流 封装 | DIP16 电阻容差 | ±2 % 温度系数 | ±100 ppm/°C 温度系数记录 | ±50 ppm/°C 工作温度 | -55°C 至 +125°C ### 表面安装 - 隔离/总线

立创商城:
470Ω ±2%

艾睿:

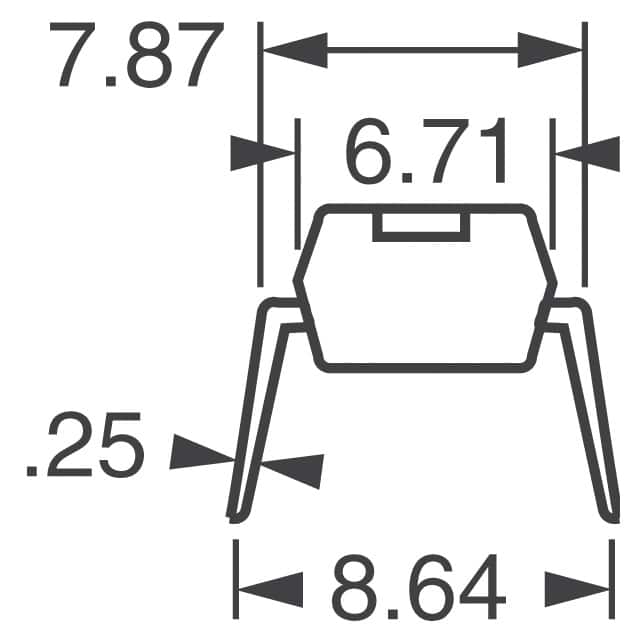

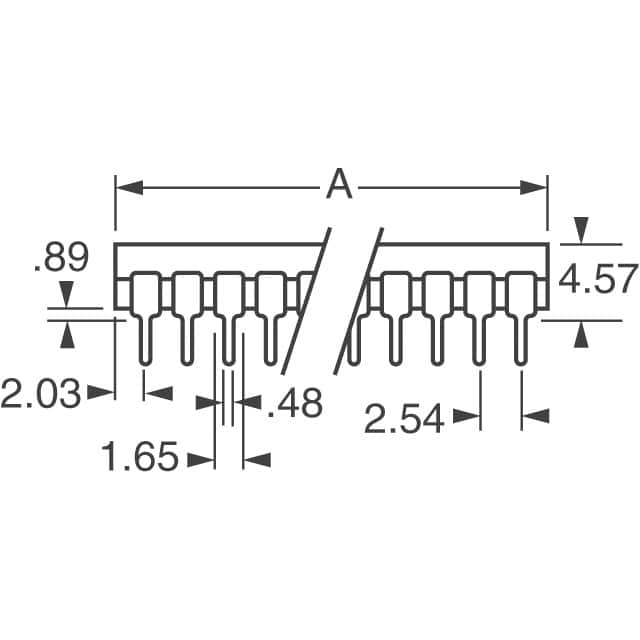

If you&s;re looking to conserve space in your circuit design, then this 4116R-2-471LF resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. This product&s;s 15 resistors have a value of 470 Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 2.25 W and a power rating per resistor of 0.125 1/8 W. It has 16 terminals. The 4116R-2-471LF part has a pin termination style. It has a tolerance of 2%. This product is 21.97 mm long, 4.57 mm tall and 7.87 mm deep. This product&s;s terminal pitch is 2.54 mm. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C.

Allied Electronics:
15-bussed thick film resistor, 470R 2.25W

安富利:
Res Thick Film NET 470 Ohm 2% 2.25W ±100ppm/°C BUS Molded 16-Pin DIP Pin Thru-Hole

Chip1Stop:
Res Thick Film NET 470 Ohm 2% 2.25W ±100ppm/℃ BUS Molded 16-Pin DIP Pin Thru-Hole

Verical:
Res Thick Film NET 470 Ohm 2% 2.25W ±100ppm/C BUS Molded 16-Pin DIP Pin Thru-Hole

Newark:
# BOURNS  4116R-2-471LF  Fixed Network Resistor, Thick Film, 470 ohm, 100 V, 16 Elements, Bussed, DIP, 125 mW

MASTER:
Res Thick Film NET 470 Ohm 2% 2.25W ±100ppm/°C BUS Molded 16-Pin DIP Pin Thru-Hole

Electro Sonic:
Res Thick Film NET 470 Ohm 2% 2.25W ±100ppm/°C BUS Molded 16-Pin DIP Pin Thru-Hole
