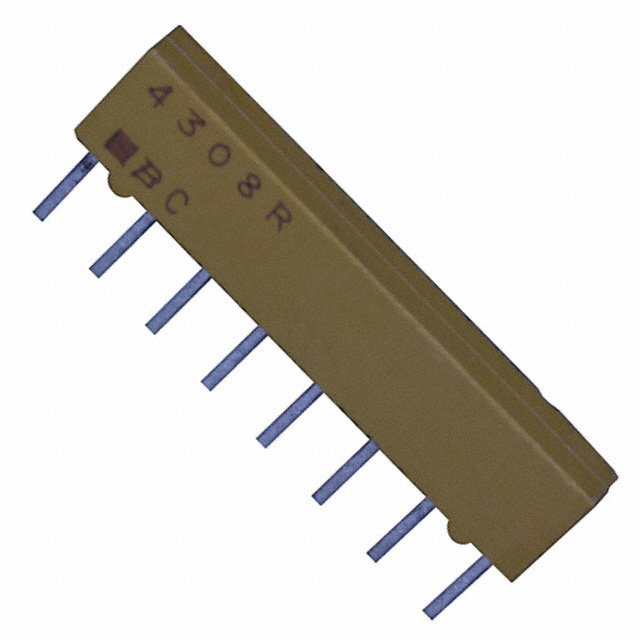

4308R-102-102

Res Thick Film NET 1KΩ 2% 1W ±100ppm/℃ ISOL Molded 8Pin SIP Pin Thru-Hole

1k 欧姆 ±2% 300mW 每元件功率 隔离 4 器网络，阵列 ±100ppm/°C 8-SIP

得捷:
RES ARRAY 4 RES 1K OHM 8SIP

艾睿:
By combining multiple resistors into a single chip, the 4308R-102-102 resistor array, developed by Bourns, can help you save space and power in your circuit design. This dependable part has a power rating of 1 W and a power rating per resistor of 0.3 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 4 resistors have a value of 1K Ohm. It has 8 terminals. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm. This product is 19.92 mm long, 4.95 mm tall and 2.16 mm deep. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. The 4308R-102-102 part has a pin termination style.

Allied Electronics:
4308R-102-102

安富利:
Res Thick Film NET 1K Ohm 2% 1W ±100ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole

Chip1Stop:
Res Thick Film NET 1K Ohm 2% 1W ±100ppm/℃ ISOL Molded 8-Pin SIP Pin Thru-Hole

Verical:
Res Thick Film NET 1K Ohm 2% 1W ±100ppm/C ISOL Molded 8-Pin SIP Pin Thru-Hole

MASTER:
Res Thick Film NET 1K Ohm 2% 1W ±100ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole

Electro Sonic:
Res Thick Film NET 1K Ohm 2% 1W ±100ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole
