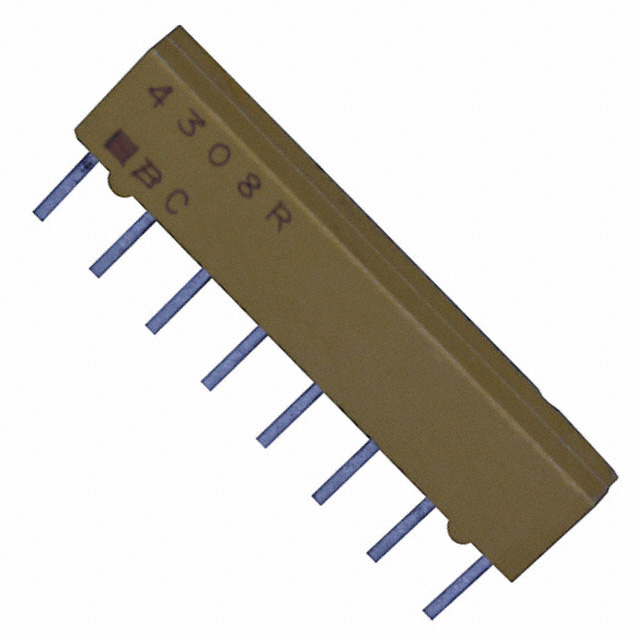

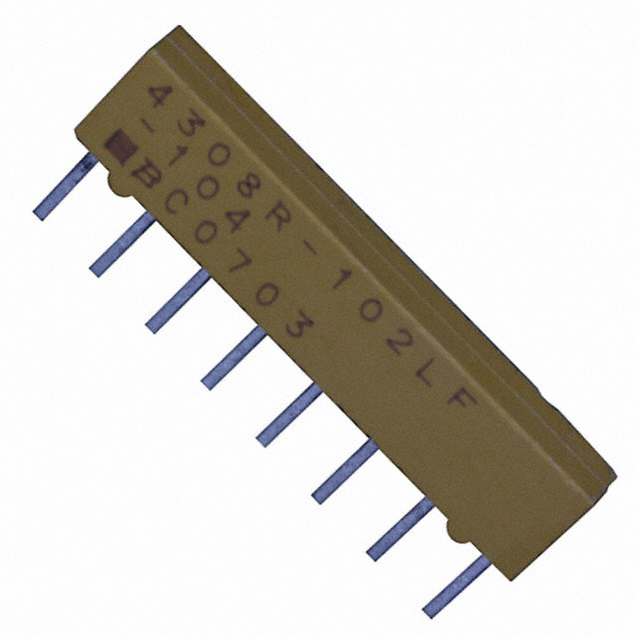

4308R-102-220LF

22 ±1 欧姆

22 欧姆 ±1 欧姆 300mW 每元件功率 隔离 4 器网络，阵列 ±250ppm/°C 8-SIP

立创商城:
22Ω ±1Ω

艾睿:
Create more space in your circuit design by using this 4308R-102-220LF resistor array developed by Bourns that packs multiple resistors into one IC chip. This dependable part has a power rating of 1 W and a power rating per resistor of 0.3 W. This product&s;s 4 resistors have a value of 22 Ohm. Its temperature coefficient is ±250 ppm/°C. It has 8 terminals. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. This product is 19.92 mm long, 4.95 mm tall and 2.16 mm deep. This product&s;s terminal pitch is 2.54 mm. The 4308R-102-220LF part has a pin termination style.

Allied Electronics:
4308R-102-220LF

安富利:
Res Thick Film NET 22 Ohm 1 Ohm 1W ±250ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole

Chip1Stop:
Res Thick Film NET 22 Ohm 1 Ohm 1W 250ppm/ C ISOL Molded 8-Pin SIP Pin Thru-Hole

Newark:
# BOURNS  4308R-102-220LF  Fixed Network Resistor, Low Profile, 22 ohm, 100 V, 4 Elements, Isolated, SIP, 300 mW

Electro Sonic:
Res Thick Film NET 22 Ohm 1 Ohm 1W ±250ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole
