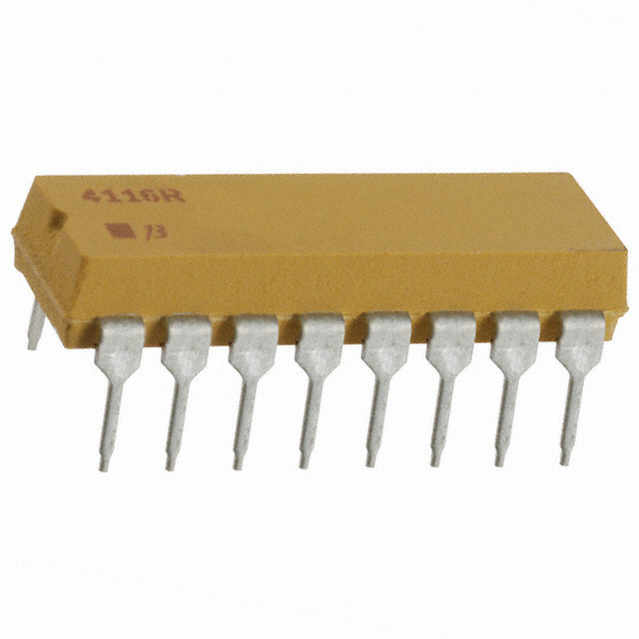

4116R-1-151

Res Thick Film NET 150Ω 2% 2.25W ±100ppm/℃ ISOL Molded 16Pin DIP Pin Thru-Hole

150 Ohm ±2% 250mW Power Per Element Isolated Resistor Network/Array ±100ppm/°C 16-DIP 0.300", 7.62mm

立创商城:
150Ω ±2%

得捷:
RES ARRAY 8 RES 150 OHM 16DIP

艾睿:

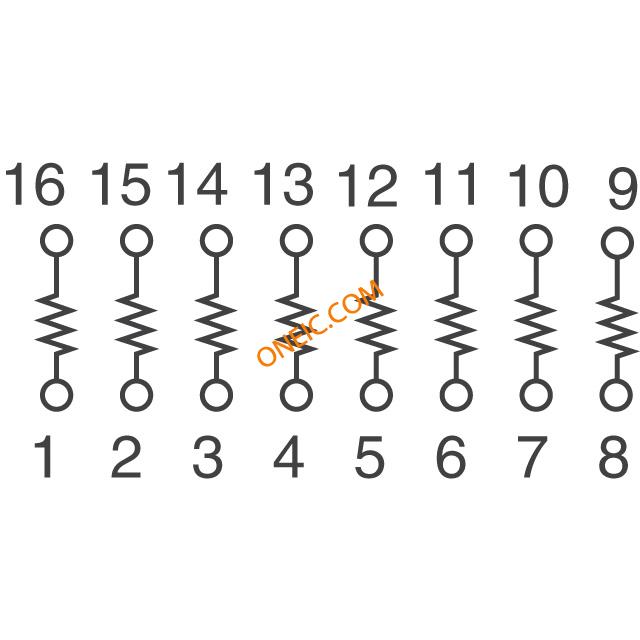

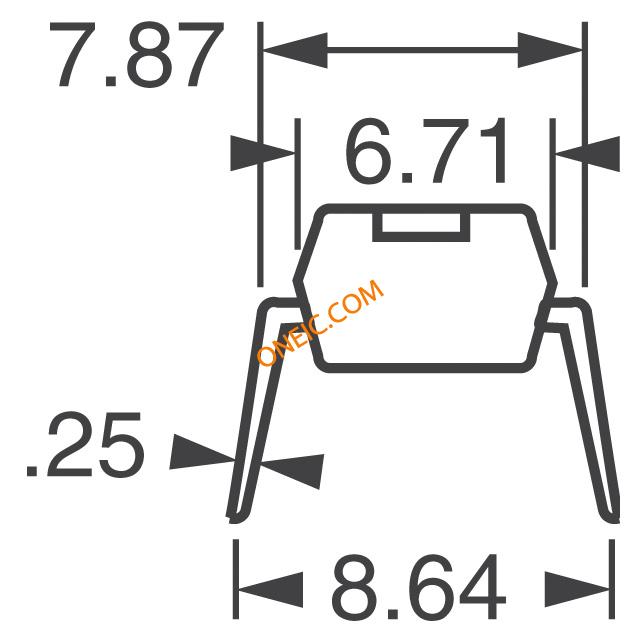

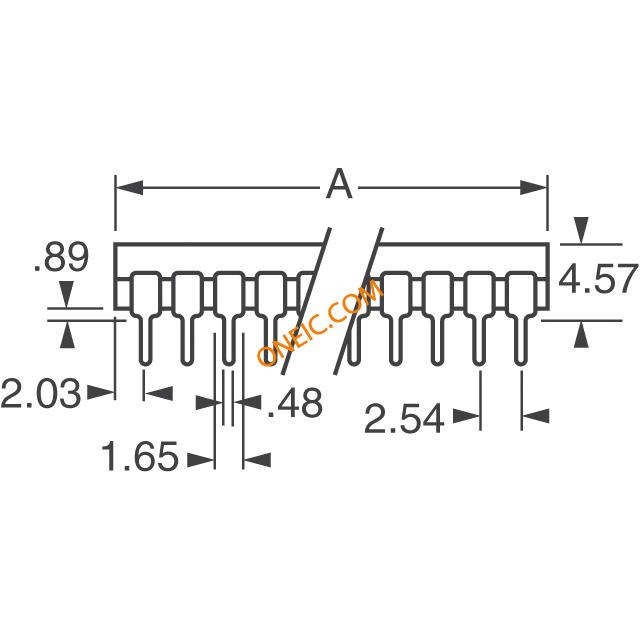

Use this 4116R-1-151 resistor array from Bourns to conserve space by packing multiple resistors into one IC chip. This dependable part has a power rating of 2.25 W and a power rating per resistor of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 8 resistors have a value of 150 Ohm. It has 16 terminals. This product is 21.97 mm long, 4.57 mm tall and 7.87 mm deep. The 4116R-1-151 part has a pin termination style. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm. It has a tolerance of 2%.

Chip1Stop:
Res Thick Film NET 150 Ohm 2% 2.25W ﾂｱ100ppm/C ISOL Molded 16-Pin DIP Pin Thru-Hole

Verical:
Res Thick Film NET 150 Ohm 2% 2.25W ±100ppm/C ISOL Molded 16-Pin DIP Pin Thru-Hole

MASTER:
Res Thick Film NET 150 Ohm 2% 2.25W ±100ppm/°C ISOL Molded 16-Pin DIP Pin Thru-Hole

Electro Sonic:
Res Thick Film NET 150 Ohm 2% 2.25W ±100ppm/°C ISOL Molded 16-Pin DIP Pin Thru-Hole
