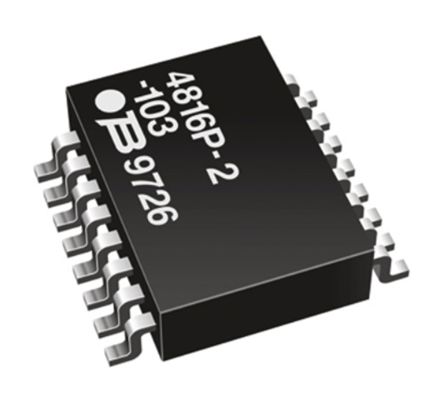

4816P-1-470LF

4800P 系列16 引脚，模制 DIL 表面安装电阻器网络与自动贴装设备和所有常用焊接技术兼容。 对比背景标记，用于永久性标识 兼容引线以降低焊接接点疲劳 标准电气示意图：隔离、总线、双终接器 70°C 时功率 | 0.16W（单个），1.28W（总体） ---|--- 最大工作电压 | 50V 直流 尺寸（长 x 宽 x 高） | 11.18 x 7.62 x 2.03 mm 引线间距 | 1.27 mm 电阻容差 | ±2% 温度系数 | ±100ppm/°C 温度系数记录 | ±50ppm/°C 工作温度 | -55°C 至 +125°C ### 表面安装 - 隔离/总线

厚膜表面安装中型主体 - 4800P 系列

16 引脚，模制 DIL 表面安装器网络与自动贴装设备和所有常用焊接技术兼容。

对比背景标记，用于永久性标识

兼容引线以降低焊接接点疲劳

标准电气示意图：隔离、总线、双终接器

### 产品应用信息

这些表面安装电阻器网络符合 AEC-Q200 且适用于汽车应用。

### 标准

符合 AEC-Q200

得捷:
RES ARRAY 8 RES 47 OHM 16SOIC

欧时:
### 厚膜表面安装中型主体 - 4800P 系列16 引脚，模制 DIL 表面安装电阻器网络与自动贴装设备和所有常用焊接技术兼容。对比背景标记，用于永久性标识 兼容引线以降低焊接接点疲劳 标准电气示意图：隔离、总线、双终接器 ### 产品应用信息这些表面安装电阻器网络符合 AEC-Q200 且适用于汽车应用。 70°C 时功率 | 0.16W（单个），1.28W（总体） ---|--- 最大工作电压 | 50V 直流 尺寸（长 x 宽 x 高） | 11.18 x 7.62 x 2.03 mm 引线间距 | 1.27 mm 电阻容差 | ±2% 温度系数 | ±100ppm/°C 温度系数记录 | ±50ppm/°C 工作温度 | -55°C 至 +125°C ### 标准符合 AEC-Q200![http://china.rs-online.com/largeimages/L5224942-25.gif]http://china.rs-online.com/largeimages/L5224942-25.gif![http://china.rs-online.com/largeimages/LD136373-03.gif]http://china.rs-online.com/largeimages/LD136373-03.gif ![http://china.rs-online.com/largeimages/LD136373-04.gif]http://china.rs-online.com/largeimages/LD136373-04.gif ### 表面安装 - 隔离/总线

立创商城:
47Ω ±1Ω

e络盟:
固定阵列电阻, 47 ohm, 4800P Series, 8 元件, 隔离, SOIC, 16 引脚

艾睿:
Are you looking for a power-saving component that can be implemented in your circuit design? Bourns brings you their 4816P-1-470LF resistor array, essentially an IC chip with multiple resistors built in. This product&s;s 8 resistors have a value of 47 Ohm. Its temperature coefficient is ±250 ppm/°C. This dependable part has a power rating of 1.28 W and a power rating per resistor of 0.16 W. It has 16 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes thick film technology. The 4816P-1-470LF part has a gull wing termination style. This part has an operating temperature of -55 to 125 °C. This product is 11.18 mm long, 2.16 mm tall and 7.62 mm deep. This product&s;s terminal pitch is 1.27 mm.

安富利:
Res Thick Film NET 47 Ohm 1 Ohm 1.28W ±250ppm/°C ISOL Molded 16-Pin SOM Gull Wing SMD T/R

Chip1Stop:
Res Thick Film NET 47 Ohm 1 Ohm 1.28W ±250ppm/ÂÂ℃ ISOL Molded 16-Pin SOM Gull Wing SMD T/R

Verical:
Res Thick Film NET 47 Ohm 1 Ohm 1.28W ±250ppm/C ISOL 16-Pin SOM Gull Wing SMD Automotive T/R

Newark:
# BOURNS  4816P-1-470LF  Fixed Network Resistor, Surface Mount, 47 ohm, 50 V, 8 Elements, Isolated, SOIC, 160 mW

MASTER:
Fixed Network Resistor - 47 Ohm - 1.28W - Isolated - 16-Pin - 8 Elements - Gull Wing - Through Hole.

Electro Sonic:
Fixed Network Resistor - 47 Ohm - 1.28W - Isolated - 16-Pin - 8 Elements - Gull Wing - Through ...
