Res Thick Film NET 36KΩ 2% 1.25W ±100ppm/℃ BUS Molded 10Pin SIP Pin Thru-Hole
36k Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 10-SIP
得捷:
RES ARRAY 9 RES 36K OHM 10SIP
艾睿:

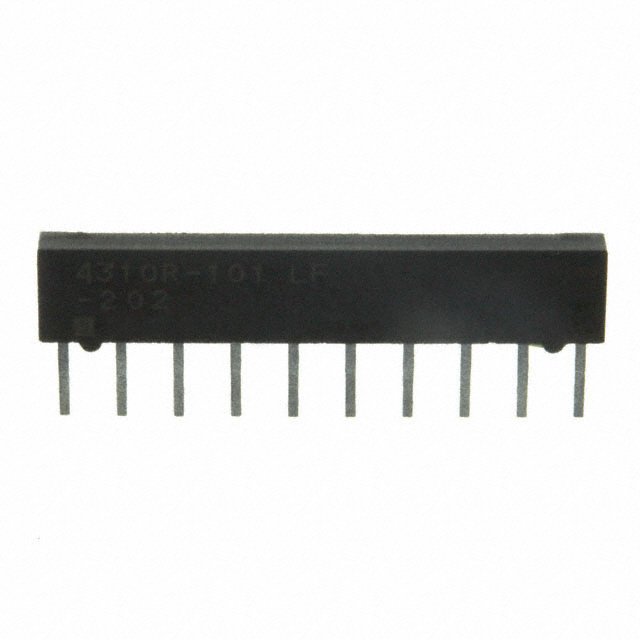

Create more space in your circuit design by using this 4310R-101-363 resistor array developed by Bourns that packs multiple resistors into one IC chip. This dependable part has a power rating of 1.25 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 9 resistors have a value of 36K Ohm. It has 10 terminals. The 4310R-101-363 part has a pin termination style. This part has an operating temperature of -55 to 125 °C. This device is made with thick film technology. It has a tolerance of 2%. This product is 24.99 mm long, 4.95 mm tall and 2.16 mm deep. This product&s;s terminal pitch is 2.54 mm.
