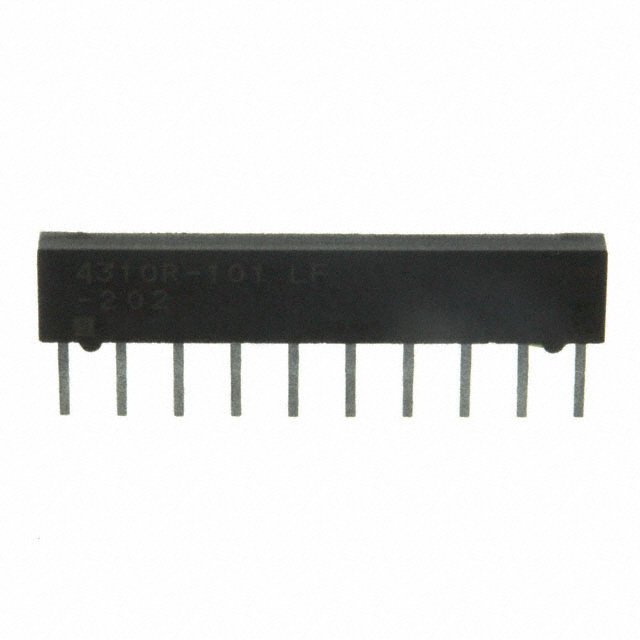

4310R-101-560

Res Thick Film NET 56Ω 2% 1.25W ±100ppm/℃ BUS Molded 10Pin SIP Pin Thru-Hole

56 Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 10-SIP

立创商城:
56Ω ±2%

得捷:
RES ARRAY 9 RES 56 OHM 10SIP

艾睿:
By combining multiple resistors into a single chip, the 4310R-101-560 resistor array, developed by Bourns, can help you save space and power in your circuit design. Its temperature coefficient is ±100 ppm/°C. This product&s;s 9 resistors have a value of 56 Ohm. This dependable part has a power rating of 1.25 W and a power rating per resistor of 0.2 1/5 W. It has 10 terminals. This product&s;s terminal pitch is 2.54 mm. This device is made with thick film technology. The 4310R-101-560 part has a pin termination style. This part has an operating temperature of -55 to 125 °C. This product is 24.99 mm long, 4.95 mm tall and 2.16 mm deep. It has a tolerance of 2%.

Allied Electronics:
RNET - THK FILM MOLD SIP

Chip1Stop:
Res Thick Film NET 56 Ohm 2% 1.25W ±100ppm/℃ BUS Molded 10-Pin SIP Pin Thru-Hole

MASTER:
Res Thick Film NET 56 Ohm 2% 1.25W ±100ppm/°C BUS Molded 10-Pin SIP Pin Thru-Hole

Electro Sonic:
Res Thick Film NET 56 Ohm 2% 1.25W ±100ppm/°C BUS Molded 10-Pin SIP Pin Thru-Hole
