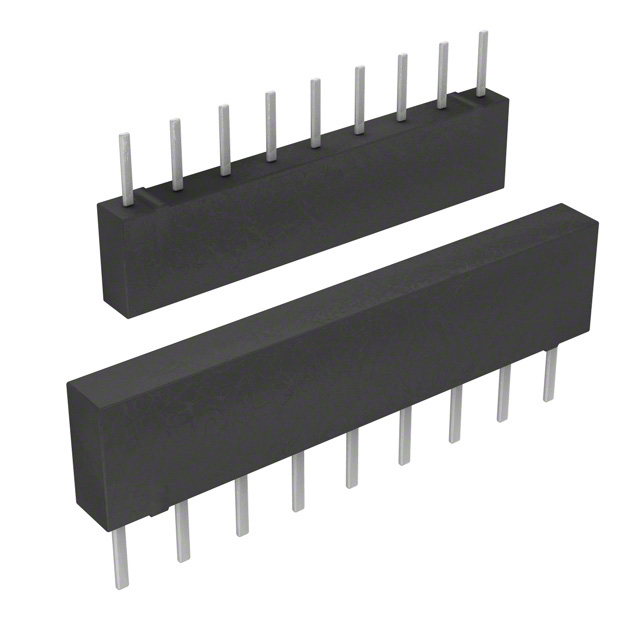

Res Thick Film NET 470Ω 2% 1.13W ±100ppm/℃ BUS Molded 9Pin SIP Pin Thru-Hole
470 Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 9-SIP
得捷:
RES ARRAY 8 RES 470 OHM 9SIP
立创商城:
470Ω ±2%
艾睿:
Res Thick Film NET 470 Ohm 2% 1.13W ±100ppm/°C BUS Molded 9-Pin SIP Pin Thru-Hole
安富利:
Res Thick Film NET 470 Ohm 2% 1.13W ±100ppm/°C BUS Molded 9-Pin SIP Pin Thru-Hole
Chip1Stop:
Res Thick Film NET 470 Ohm 2% 1.13W ±100ppm/℃ BUS Molded 9-Pin SIP Pin Thru-Hole
Verical:
Res Thick Film NET 470 Ohm 2% 1.13W ±100ppm/C BUS Molded 9-Pin SIP Pin Thru-Hole
Newark:
# BOURNS 4309R-101-471LF Fixed Network Resistor, Low Profile, 470 ohm, 100 V, 8 Elements, Bussed, SIP, 200 mW
Electro Sonic:
Res Thick Film NET 470 Ohm 2% 1.13W ±100ppm/°C BUS Molded 9-Pin SIP Pin Thru-Hole
额定电压DC 100 V
容差 ±2 %
额定功率 1.13 W
电阻 470 Ω
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 9
封装 SIP-9
长度 22.45 mm
宽度 2.16 mm
高度 4.95 mm
封装 SIP-9
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
