Res Thick Film NET 20KΩ 2% 1.25W 100ppm/℃ BUS Molded 10Pin SIP Pin Thru-Hole
20k 欧姆 ±2% 200mW 每元件功率 总线式 9 器网络，阵列 ±100ppm/°C 10-SIP
立创商城:
20kΩ ±2%
艾睿:

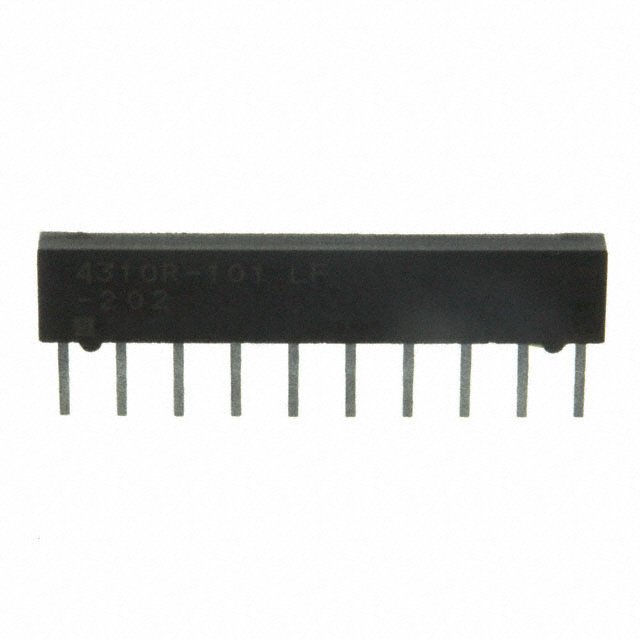

By combining multiple resistors into a single chip, the 4310R-101-203 resistor array, developed by Bourns, can help you save space and power in your circuit design. This product&s;s 9 resistors have a value of 20K Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1.25 W and a power rating per resistor of 0.2 1/5 W. It has 10 terminals. This device is made with thick film technology. This product&s;s terminal pitch is 2.54 mm. The 4310R-101-203 part has a pin termination style. This product is 24.99 mm long, 4.95 mm tall and 2.16 mm deep. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%.
Allied Electronics:
RNET - THK FILM MOLD SIP
Chip1Stop:
Res Thick Film NET 20K Ohm 2% 1.25W 100ppm/ C BUS Molded 10-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 20K Ohm 2% 1.25W ±100ppm/°C BUS Molded 10-Pin SIP Pin Thru-Hole
