Res Thick Film NET 22KΩ 2% 2.25W 100ppm/℃ ISOL Molded 16Pin DIP Pin Thru-Hole
22k 欧姆 ±2% 250mW 每元件功率 隔离 器网络,阵列 ±100ppm/°C 16-DIP(0.300",7.62mm)
得捷:

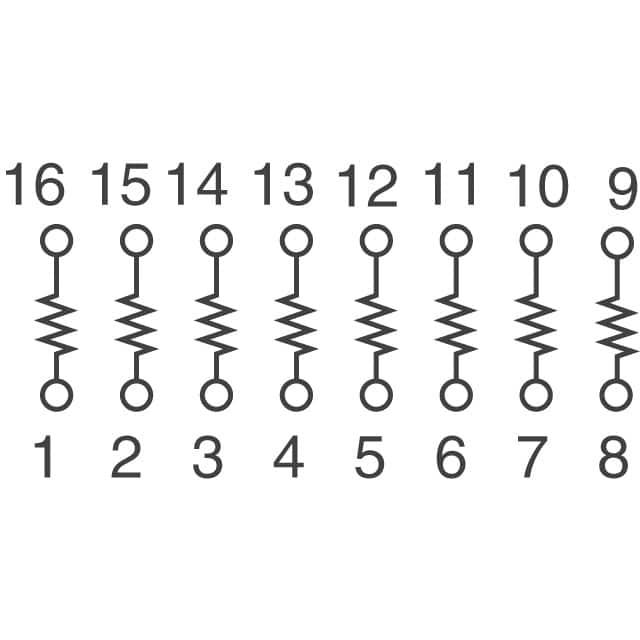

RES ARRAY 8 RES 22K OHM 16DIP
立创商城:
22kΩ ±2%
艾睿:
Pack multiple resistors into a single chip with this 4116R-1-223 resistor array from Bourns. This dependable part has a power rating of 2.25 W and a power rating per resistor of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 8 resistors have a value of 22K Ohm. It has 16 terminals. This product&s;s terminal pitch is 2.54 mm. This part has an operating temperature of -55 to 125 °C. This device is made with thick film technology. This product is 21.97 mm long, 4.57 mm tall and 7.87 mm deep. It has a tolerance of 2%. The 4116R-1-223 part has a pin termination style.
安富利:
Res Thick Film NET 22K Ohm 2% 2.25W ±100ppm/°C ISOL Molded 16-Pin DIP Pin Thru-Hole
Chip1Stop:
Res Thick Film NET 22K Ohm 2% 2.25W 100ppm/ C ISOL Molded 16-Pin DIP Pin Thru-Hole
Verical:
Res Thick Film NET 22K Ohm 2% 2.25W ±100ppm/C ISOL Molded 16-Pin DIP Pin Thru-Hole
MASTER:
Res Thick Film NET 22K Ohm 2% 2.25W ±100ppm/°C ISOL Molded 16-Pin DIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 22K Ohm 2% 2.25W ±100ppm/°C ISOL Molded 16-Pin DIP Pin Thru-Hole
触点数 16
额定电压DC 100 V
容差 ±2 %
额定功率 2.25 W
电阻 22 kΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 16
封装 DIP-16
长度 21.97 mm
宽度 7.87 mm
高度 4.57 mm
封装 DIP-16
厚度 4.57 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8533210060
