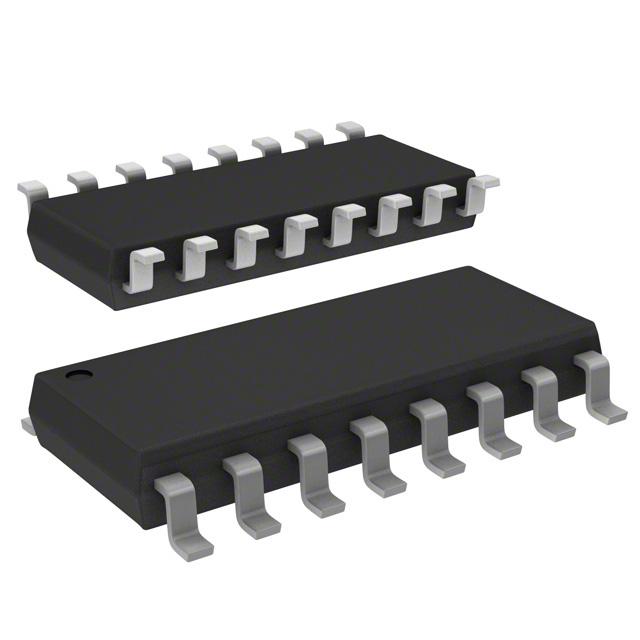

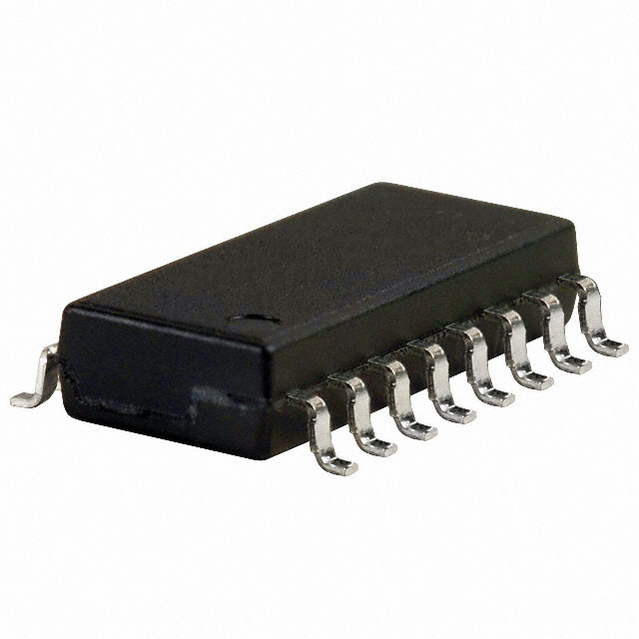

Res Thick Film NET 3.3KΩ 2% 1.28W 100ppm/℃ ISOL Molded 16Pin SOM Gull Wing SMD T/R
This resistor array by Bourns packs multiple resistors into one IC chip. This dependable part has a power rating of 1.28 W and a power rating per resistor of 0.16 W. This product"s 8 resistors have a value of 3.3K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 16 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 11.18 mm long, 2.16 mm tall and 7.62 mm deep. It has a tolerance of 2%. This part has an operating temperature of -55 to 125 °C. The 4816P-1-332LF part has a gull wing termination style. This device utilizes thick film technology. This product"s terminal pitch is 1.27 mm.
额定电压DC 50.0 V
容差 ±2 %
额定功率 1.28 W
电阻 3.3 kΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 VDC
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 11.18 mm
宽度 7.62 mm
高度 2.03 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级 AEC-Q200
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
