4816P-1-393LF

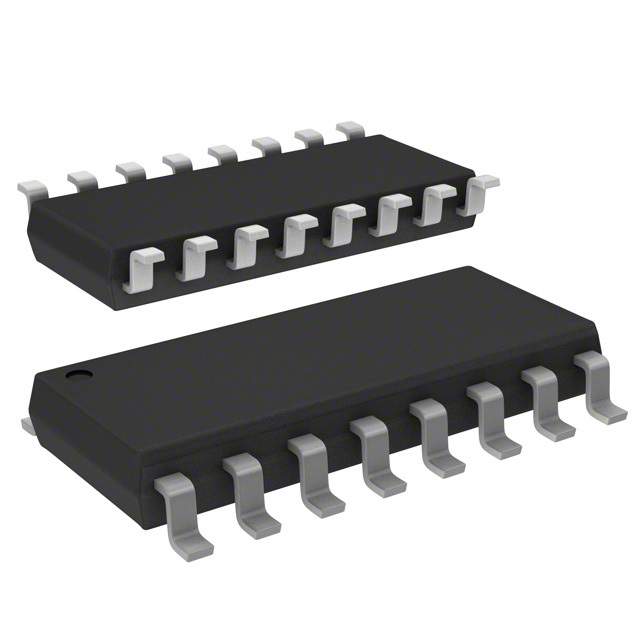

4816P-1-393LF图片1
4816P-1-393LF图片2
4816P-1-393LF图片3
4816P-1-393LF图片4
4816P-1-393LF图片5
4816P-1-393LF图片6
4816P-1-393LF图片7
4816P-1-393LF图片8
4816P-1-393LF概述

Res Thick Film NET 39KΩ 2% 1.28W ±100ppm/℃ ISOL Molded 16Pin SOM Gull Wing SMD T/R

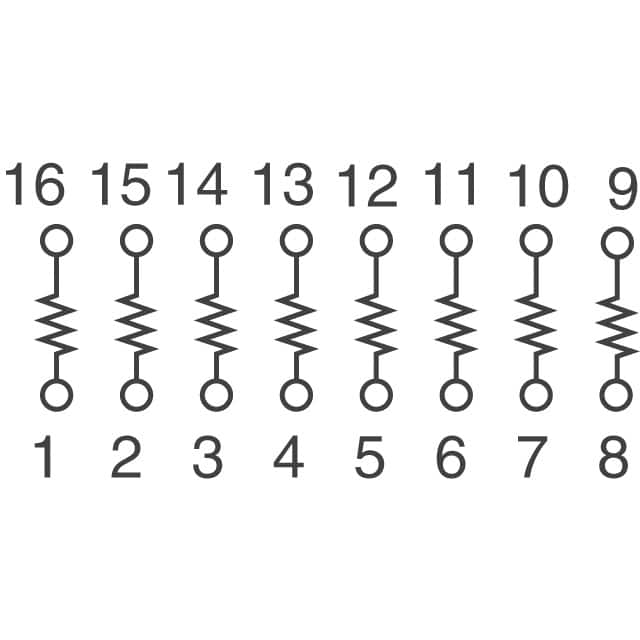

39k 欧姆 ±2% 160mW 每元件功率 隔离 8 器网络,阵列 ±100ppm/°C 16-SOIC(0.220",5.59mm 宽)


得捷:
RES ARRAY 8 RES 39K OHM 16SOIC


贸泽:
Resistor Networks & Arrays 39K 2% 16Pin SMT


艾睿:
By combining multiple resistors into a single chip, the 4816P-1-393LF resistor array, developed by Bourns, can help you save space and power in your circuit design. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1.28 W and a power rating per resistor of 0.16 W. This product&s;s 8 resistors have a value of 39K Ohm. It has 16 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature of -55 to 125 °C. This product is 11.18 mm long, 2.16 mm tall and 7.62 mm deep. It has a tolerance of 2%. The 4816P-1-393LF part has a gull wing termination style. This product&s;s terminal pitch is 1.27 mm. This device is made with thick film technology.


安富利:
Res Thick Film NET 39K Ohm 2% 1.28W ±100ppm/°C ISOL Molded 16-Pin SOM Gull Wing SMD T/R


Electro Sonic:
Res Thick Film NET 39K Ohm 2% 1.28W ±100ppm/°C ISOL 16-Pin SOM Gull Wing SMD Automotive T/R


4816P-1-393LF中文资料参数规格
技术参数

容差 ±2 %

额定功率 1.28 W

电阻 39 kΩ

阻值偏差 ±2 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 16

封装 SOIC-16

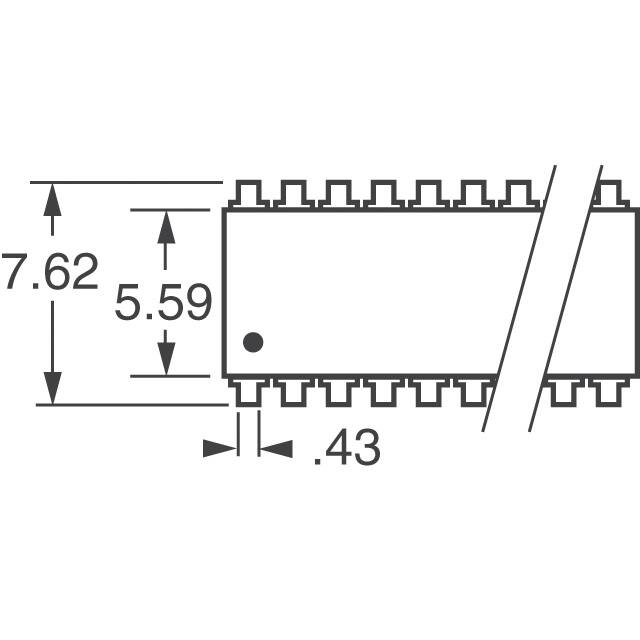

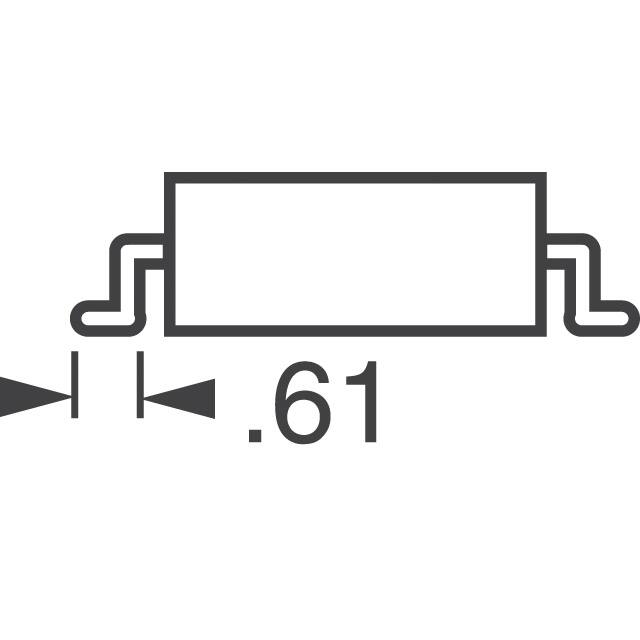

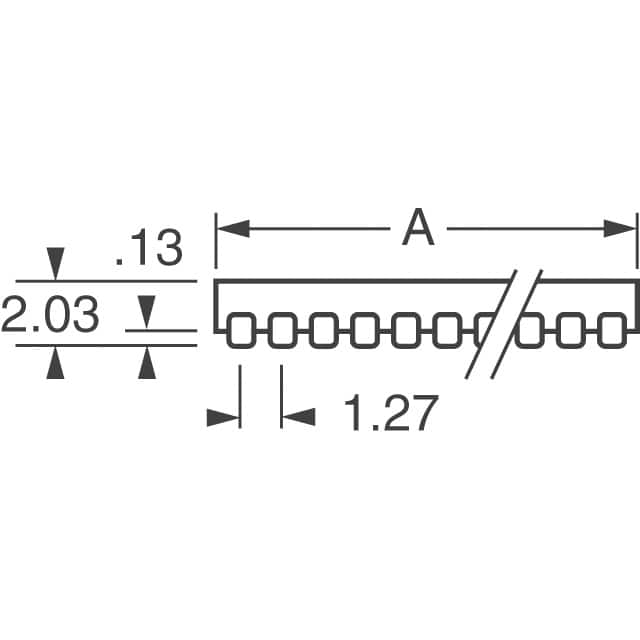

外形尺寸

长度 9.53 mm

宽度 7.62 mm

高度 2.16 mm

封装 SOIC-16

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 汽车级 AEC-Q200, 汽车级AEC-Q200

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买4816P-1-393LF
型号: 4816P-1-393LF
制造商: Bourns J.W. Miller 伯恩斯
描述:Res Thick Film NET 39KΩ 2% 1.28W ±100ppm/℃ ISOL Molded 16Pin SOM Gull Wing SMD T/R
