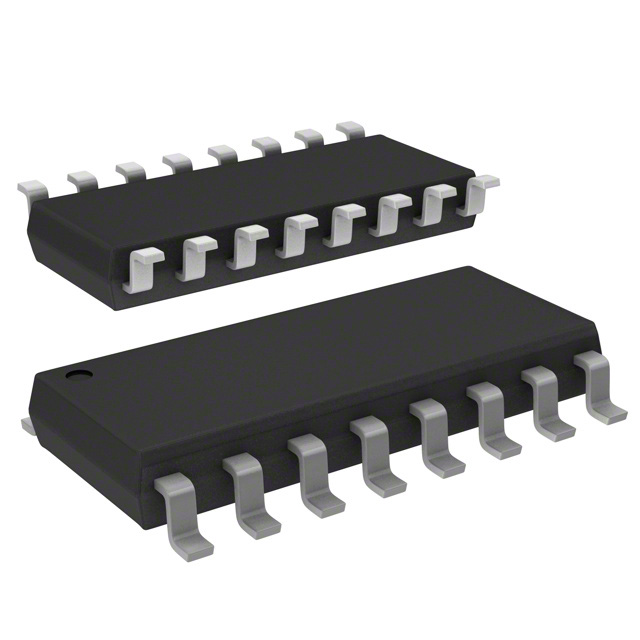

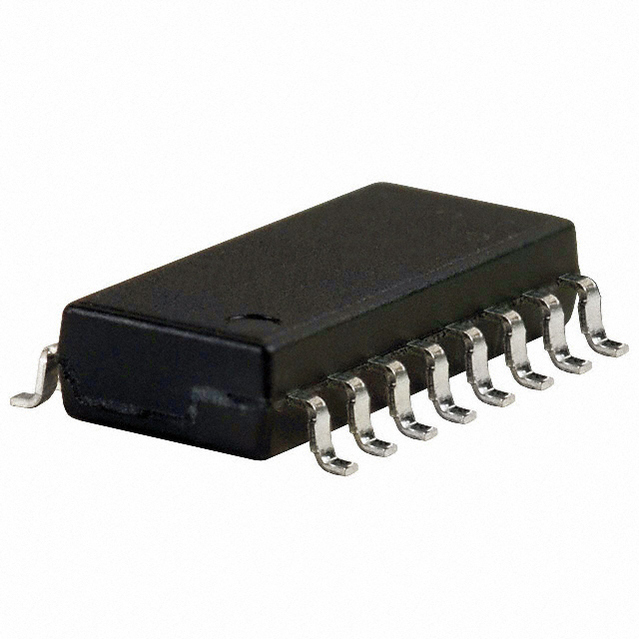

Res Thick Film NET 330Ω 2% 1.28W 100ppm/℃ BUS Molded 16Pin SOM Gull Wing SMD T/R
By combining multiple resistors into a single chip, the resistor array, developed by Bourns, can help you save space and power in your circuit design. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1.28 W and a power rating per resistor of 0.08 W. This product"s 15 resistors have a value of 330 Ohm. It has 16 terminals. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product"s terminal pitch is 1.27 mm. This device utilizes thick film technology. This product is 11.18 mm long, 2.16 mm tall and 7.62 mm deep. The 4816P-2-331LF part has a gull wing termination style. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%.
容差 ±2 %
额定功率 1.28 W
电阻 330 Ω
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 11.18 mm
宽度 7.62 mm
高度 2.16 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级 AEC-Q200
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210020
