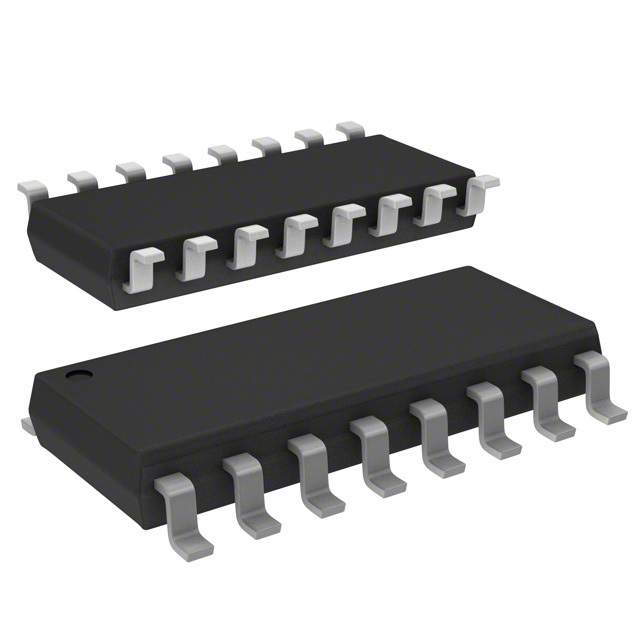

BOURNS 4816P-1-330LF 电阻阵列, 隔离, 8X, 33R, 1%, SOIC 新
This resistor array by Bourns packs multiple resistors into one IC chip. This dependable part has a power rating of 1.28 W and a power rating per resistor of 0.16 W. This product"s 8 resistors have a value of 33 Ohm. Its temperature coefficient is ±250 ppm/°C. It has 16 terminals. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 11.18 mm long, 2.16 mm tall and 7.62 mm deep. This device utilizes thick film technology. The 4816P-1-330LF part has a gull wing termination style. This product"s terminal pitch is 1.27 mm. This part has an operating temperature of -55 to 125 °C.
额定电压DC 50.0 V
额定功率 1.28 W
针脚数 16
电阻 33 Ω
阻值偏差 ±1 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 11.18 mm
宽度 7.62 mm
高度 2.03 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
温度系数 ±250 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级 AEC-Q200
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210020
