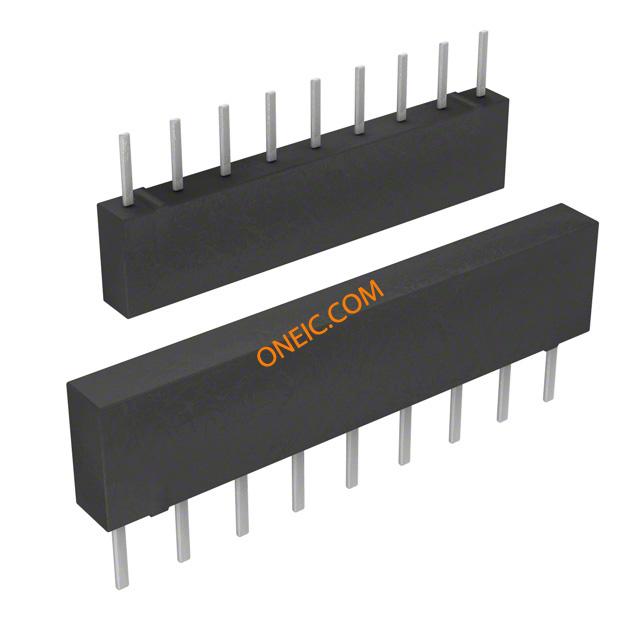

电阻器网络与阵列 10pin 2.2Kohms Bussed Low Profile
2.2k Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 9-SIP
得捷:
RES ARRAY 8 RES 2.2K OHM 9SIP
贸泽:
电阻器网络与阵列 10pin 2.2Kohms Bussed Low Profile
艾睿:
Are you looking for a power-saving component that can be implemented in your circuit design? Bourns brings you their 4309R-101-222 resistor array, essentially an IC chip with multiple resistors built in. This product&s;s 8 resistors have a value of 2.2K Ohm. This dependable part has a power rating of 1.13 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. It has 9 terminals. This product&s;s terminal pitch is 2.54 mm. It has a tolerance of 2%. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. This product is 22.45 mm long, 4.95 mm tall and 2.16 mm deep. The 4309R-101-222 part has a pin termination style.
Allied Electronics:
4309R-101-222
Chip1Stop:
Res Thick Film NET 2.2K Ohm 2% 1.13W 100ppm/ C BUS Molded 9-Pin SIP Pin Thru-Hole
Verical:
Res Thick Film NET 2.2K Ohm 2% 1.13W ±100ppm/C BUS Molded 9-Pin SIP Pin Thru-Hole
Newark:
# BOURNS 4309R-101-222 Fixed Network Resistor, Low Profile, 2.2 kohm, 100 V, 8 Elements, Bussed, SIP, 200 mW
MASTER:
Res Thick Film NET 2.2K Ohm 2% 1.13W ±100ppm/°C BUS Molded 9-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 2.2K Ohm 2% 1.13W ±100ppm/°C BUS Molded 9-Pin SIP Pin Thru-Hole
额定电压DC 100 V
容差 ±2 %
额定功率 1.13 W
针脚数 9
电阻 2.2 kΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 9
封装 SIP-9
长度 22.45 mm
宽度 2.16 mm
高度 4.95 mm
封装 SIP-9
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 NRND: Not recommended for new designs.
包装方式 Bulk
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210050
