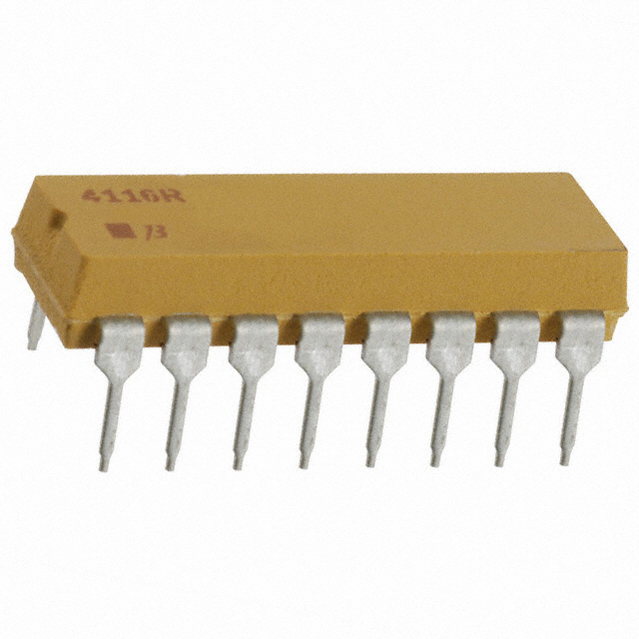

BOURNS 4116R-1-224LF 电阻网络/排阻, 220千欧 2% 2.25W 100V
Downsize multiple resistors onto a single chip with the resistor array, developed by Bourns. This dependable part has a power rating of 2.25 W and a power rating per resistor of 0.25 1/4 W. This product"s 8 resistors have a value of 220K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 16 terminals. The 4116R-1-224LF part has a pin termination style. This product is 21.97 mm long, 4.57 mm tall and 7.87 mm deep. This product"s terminal pitch is 2.54 mm. This part has an operating temperature of -55 to 125 °C. This device is made with thick film technology. It has a tolerance of 2%.
触点数 16
额定电压DC 100 V
容差 ±2 %
额定功率 2.25 W
针脚数 16
电阻 220 kΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
长度 21.97 mm
宽度 7.87 mm
高度 4.57 mm
封装 DIP-16
厚度 4.57 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210060
