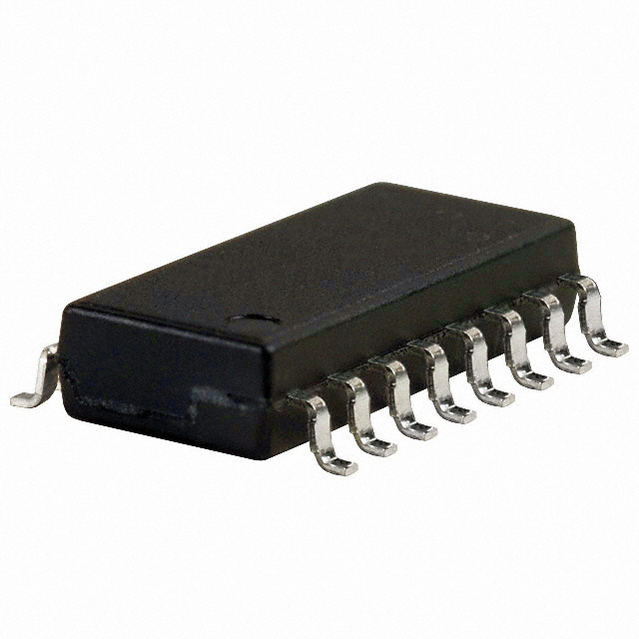

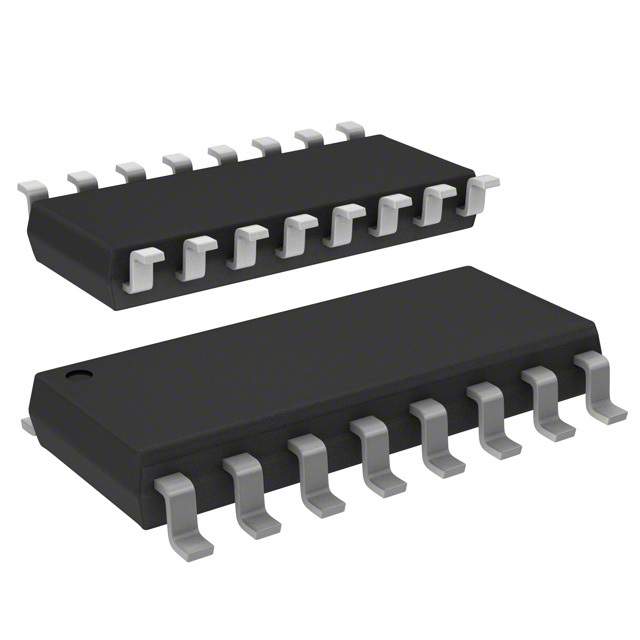

Res Thick Film NET 220KΩ 2% 1.28W 100ppm/℃ ISOL Molded 16Pin SOM Gull Wing SMD T/R
Conserve space and power by adopting this resistor array from Bourns, allowing multiple configurations of resistors to be downsized into an IC. This product"s 8 resistors have a value of 220K Ohm. This dependable part has a power rating of 1.28 W and a power rating per resistor of 0.16 W. Its temperature coefficient is ±100 ppm/°C. It has 16 terminals. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The 4816P-1-224LF part has a gull wing termination style. It has a tolerance of 2%. This product"s terminal pitch is 1.27 mm. This device is made with thick film technology. This product is 11.18 mm long, 2.16 mm tall and 7.62 mm deep. This part has an operating temperature of -55 to 125 °C.
容差 ±2 %
额定功率 1.28 W
电阻 220 kΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 11.18 mm
宽度 7.62 mm
高度 2.03 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级AEC-Q200, 汽车级 AEC-Q200
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210020
