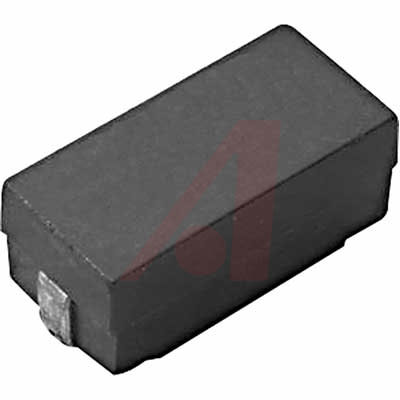

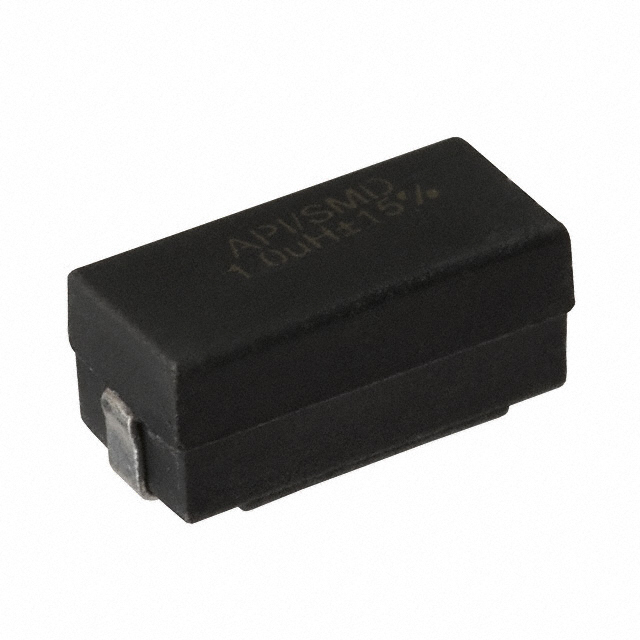

4922R-30L

Inductor; RF; Ind 270uH; Tol 15%; Cur 0.47A; SMT; DCR 1.77Ω

**Operating Temperature Range:** –55°C to +125°C

**Current Rating at 85°C Ambient:** 40°C Rise

**Maximum Power Dissipation at 85°C:** 0.55 W

**Inductance:** Measured at 1 VAC open circuit with no DC current.

**Incremental Current:** The current at which the inductance will be decreased by a maximum of 5% from its initial zero DC value.

**Optional Tolerances:** 10% and 5% available. 3% also available for values ≥ 10 μH

得捷:
FIXED IND 270UH 470MA 1.77OHM SM

艾睿:
Inductor Power Molded/Unshielded Wirewound 270uH 15% 1KHz Ferrite 470mA 1.77Ohm DCR 4922 T/R

Allied Electronics:
Inductor; RF; Ind 270uH; Tol 15%; Cur 0.47A; SMT; DCR 1.77 Ohms
