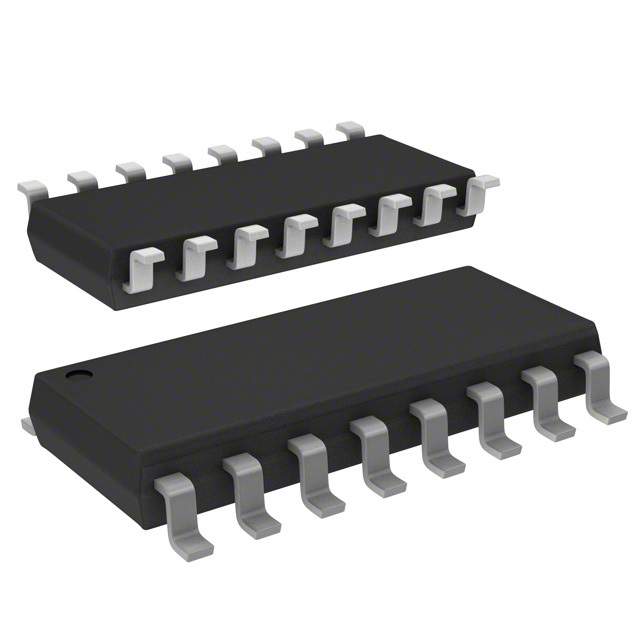

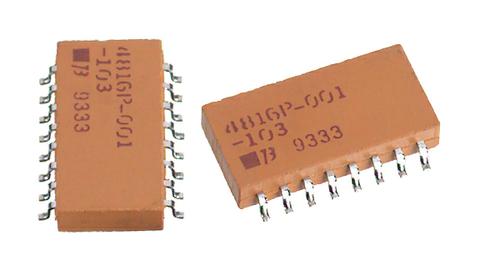

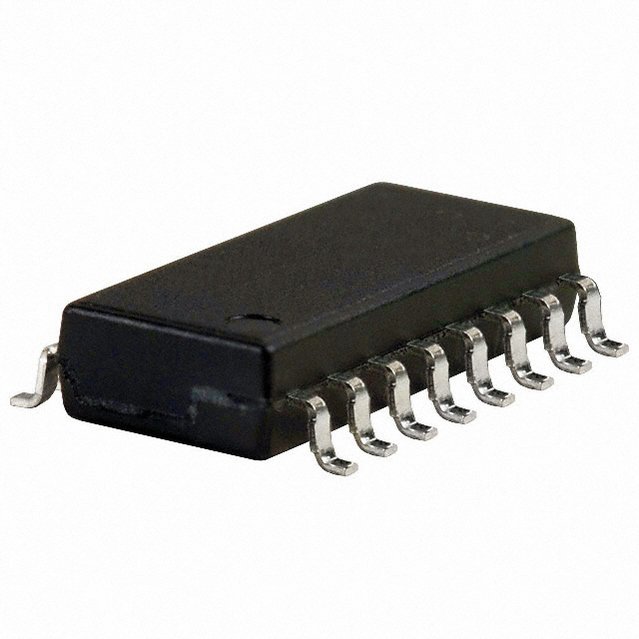

4816P-T02-223LF

Res Thick Film NET 22KΩ 2% 1.28W 100ppm/℃ BUS Molded 16Pin SOM Gull Wing SMD Tube

If you"re looking to conserve space in your circuit design, then this resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1.28 W and a power rating per resistor of 0.08 W. This product"s 15 resistors have a value of 22K Ohm. It has 16 terminals. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -55 to 125 °C. This product is 11.18 mm long, 2.16 mm tall and 7.62 mm deep. The 4816P-T02-223LF part has a gull wing termination style. This device is made with thick film technology. It has a tolerance of 2%. This product"s terminal pitch is 1.27 mm.
