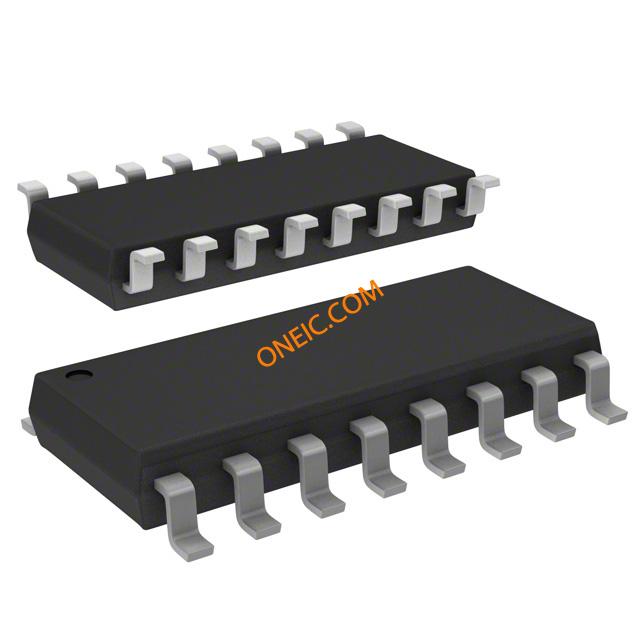

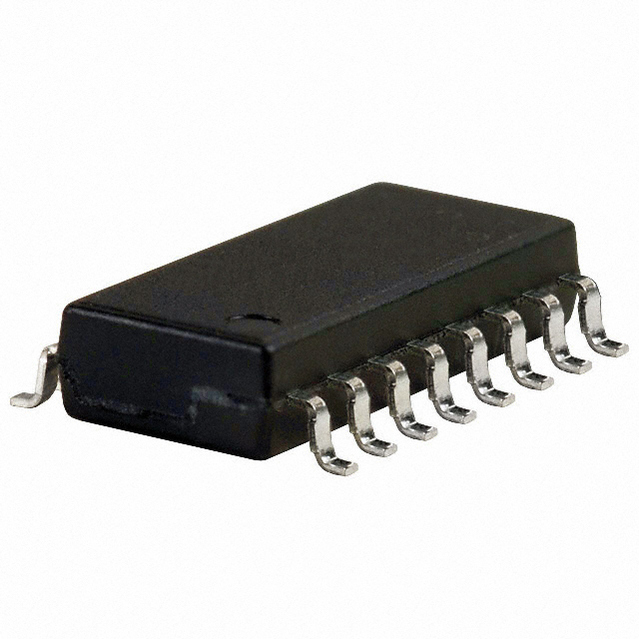

BOURNS 4816P-T01-105LF 电阻网络,1M
Create more space in your circuit design by using this resistor array developed by Bourns that packs multiple resistors into one IC chip. This product"s 8 resistors have a value of 1M Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1.28 W and a power rating per resistor of 0.16 W. It has 16 terminals. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product"s terminal pitch is 1.27 mm. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. It has a tolerance of 2%. The 4816P-T01-105LF part has a gull wing termination style. This product is 11.18 mm long, 2.16 mm tall and 7.62 mm deep.
触点数 16
额定电压DC 50.0 V
绝缘电阻 10.0 MΩ
容差 ±2 %
额定功率 1.28 W
针脚数 16
电阻 1 MΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 11.18 mm
宽度 7.62 mm
高度 2.03 mm
脚长度 130 µm
封装 SOIC-16
厚度 2.03 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
制造应用 汽车级AEC-Q200, 汽车级 AEC-Q200
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
