Array/Network Resistor, Isolated, Metal Glaze/thick Film, 1.6W, 15000Ω, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 7808, SIP, ROHS COMPLIANT
15k 欧姆 ±2% 500mW 每元件功率 隔离 器网络，阵列 ±100ppm/°C 8-SIP
得捷:
RES ARRAY 4 RES 15K OHM 8SIP
立创商城:
15kΩ ±2%
艾睿:

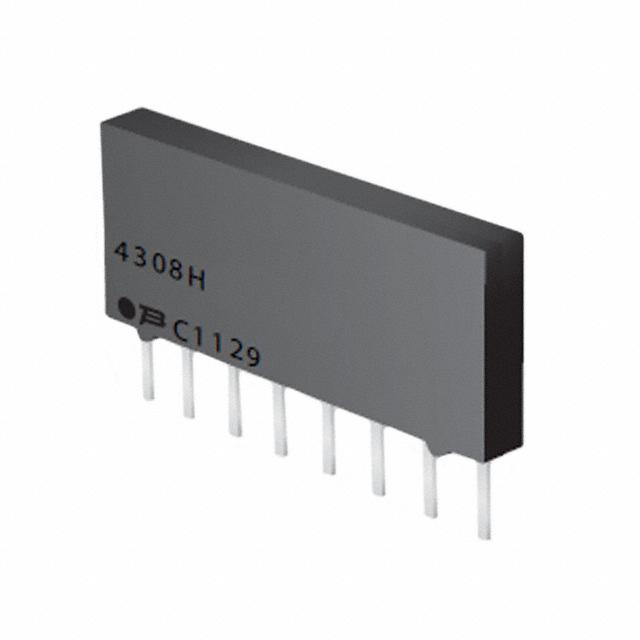

By combining multiple resistors into a single chip, the 4308H-102-153LF resistor array, developed by Bourns, can help you save space and power in your circuit design. This dependable part has a power rating of 1.6 W and a power rating per resistor of 0.5 1/2 W. This product&s;s 4 resistors have a value of 15K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 8 terminals. The 4308H-102-153LF part has a pin termination style. It has a tolerance of 2%. This product is 19.91 mm long, 8.89 mm tall and 2.16 mm deep. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm. This device is made with thick film technology.
Verical:
Res Thick Film NET 15K Ohm 2% 1.6W ±100ppm/C ISOL Molded 8-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 15K Ohm 2% 1.6W ±100ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole
