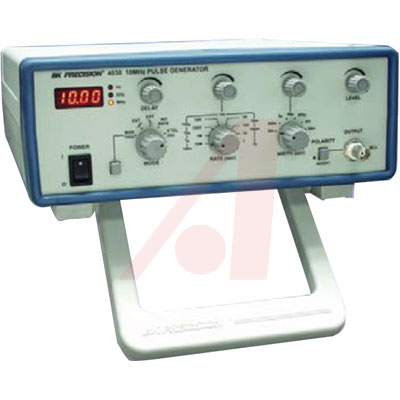

Bench Signal Generator 0.1Hz to 10MHz with LED
Model is a versatile signal source which combines four functions into one unit — waveform generation, pulse generation through variable symmetry, frequency sweep operation, and triggered operation. The 4030 offers low rise and fall time pulsed signals up to 10 MHz to meet many test and measurement applications. With this versatility, the unit a vast number of applications in both analog and digital electronics in the engineering, manufacturing, servicing, educational and hobbyist fields.
**Features**
* Frequency Range: 0.1 Hz to 10 MHz in 8 Decade Ranges and Variable Internal
* X"Tal Spot Frequency: 1 Hz, 10 Hz, 100 Hz, 1 KHz, 10 KHz, 100 KHz, 1 MHz, 10 MHz
* Rate: 100 ns – 0.1s
* Internal Triggering: 0.1 Hz to 10 MHz
* External Triggering: 10 Hz to 10 MHz
* Manual Triggering: 1 Pulse Per Sec *for 10 MHz Rate Only
* Ext. Trig-Input: +1 V-+10 Vp-p Sine and Square Waveform
* Pulse Width: 50 ns-50 ms 6 Decade Ranges and Variable
* Pulse Delay: 0-2 μS Variable W.R.T. Trigger
* Output Main Out: 1-10 V Open Circuit
* Pulse Out: 0.5-5 V at 50Ω
* Impedance: 50Ω
* Rise and Fall Time: 10 ns Approximately
