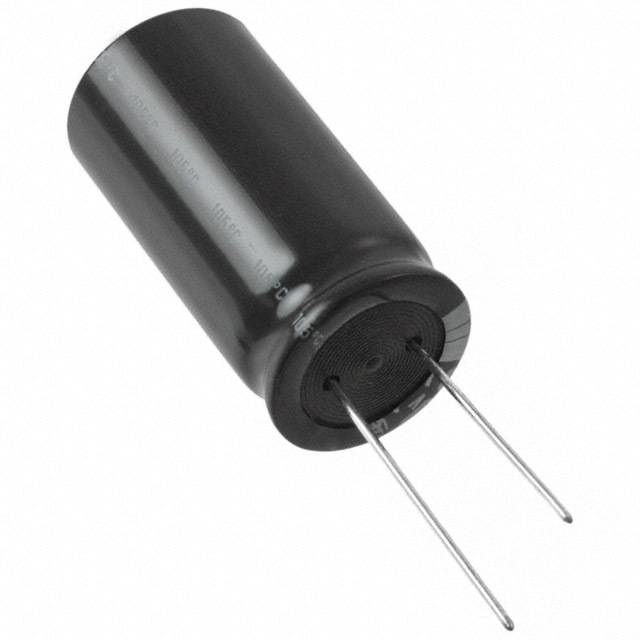

RUBYCON 450BXW100MEFC18X30 铝电解电容, 微型, BXW系列, 100 µF, ± 20%, 450 V, 18 mm, 径向引线
The is a miniature aluminium Electrolytic Capacitor with radial leaded terminals and PET sleeve. The aluminium electrolytic capacitor has a feature in that it is small in size, large in capacity and highly resistant to overvoltage and reverse voltage as compared with other capacitors. Capacitor of this type is used in wide applications ranging from navigation systems requiring high performance and high reliability to AV audio and visual equipment and camera flashes.
- .
- 1.688A RMS at 100kHz/105°C and 0.750A RMS at 120Hz/105°C Rated ripple current
额定电压DC 450 V
电容 100 µF
容差 ±20 %
纹波电流 750 mA
纹波电流高频 750mA @120Hz
纹波电流低频 1.688A @100kHz
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压 450 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 7.5 mm
高度 30 mm
直径 18.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
寿命（小时） 12000h @105℃
制造应用 消费电子产品, 军用与航空, Computers & Computer Peripherals, Aerospace, Defence, Military, 多媒体, Consumer Electronics, 计算机和计算机周边, 国防, Multimedia, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
450BXW100MEFC18X30 Rubycon | 当前型号 | 当前型号 |
EKXJ451ELL101ML50S 贵弥功 | 功能相似 | 450BXW100MEFC18X30和EKXJ451ELL101ML50S的区别 |
107CKS450M Illinois Capacitor | 功能相似 | 450BXW100MEFC18X30和107CKS450M的区别 |
