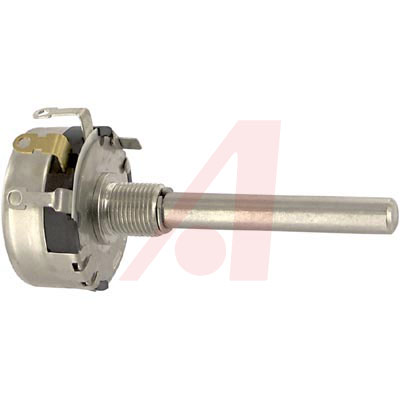

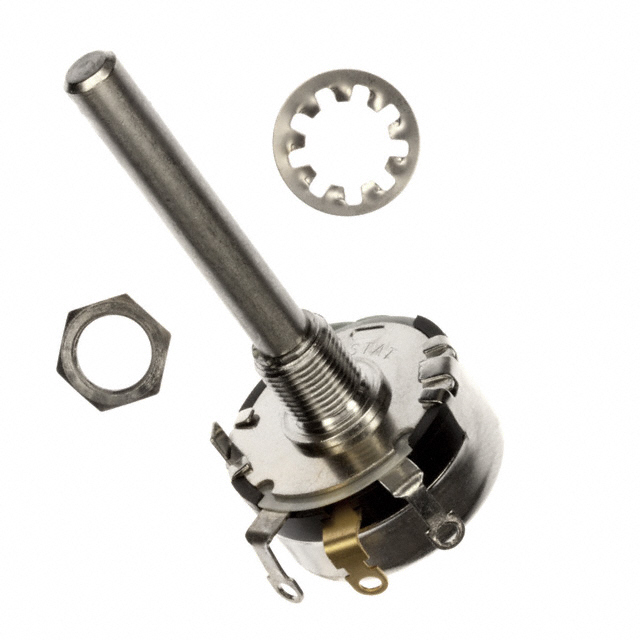

43C110K

Res Wirewound POT 10KΩ 5% 2W 1Elec/1MechTurn 6.35mm 65.88 X 28.58 X 38.89mm Solder Lug Panel Mount

Potentiometers, Nickel-Plated Brass Material Slotted, Resistance Value 10 Ohms to 50 Killoohms

The Series 43 wirewound potentiometers are both economical and versatile. The 43C1 has a 1/4" diameter, 2" long FMS shaft in a 3/8" long bushing with 3/8-32-NEF-2A threads. The 43C2 has a 1/4" diameter, 5/8" long FMS screwdriver slotted shaft in a 1/2" long split locking bushing with 3/8-32-NEF-2A threads.

.

* Electrical and Mechanical Rotation:** 300°±5°. ** Resistive Tolerance:** ±5%. ** Operating Temperature Range:** -55°C to +105°C.
