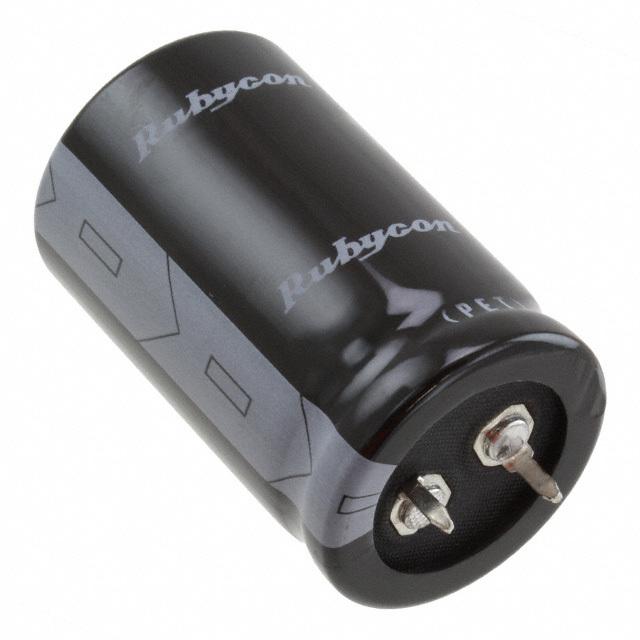

450HXG220MEFCSN25X40

220uF ±20% 450V 1.97A105℃&120Hz Φ25mm

This electrolytic aluminum capacitor from has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 40 mm tall with a diameter of 25 mm. Its capacitance value is 220uF. This part has a lead diameter of 1.5 mm and a pitch of 10 mm. The 450HXG220MEFCSN25X40 aluminum electrolytic capacitor has a snap-in termination style. It has a tolerance of 20%. Its leakage current is 943.93@5Min μA.
