4-644563-0

Conn IDC Connector F 10POS 2.54mm IDT RA Cable Mount Bag

10 位置矩形连 插座 IDC 锡 24 AWG

得捷:
CONN RCPT 10POS IDC 24AWG TIN

艾睿:

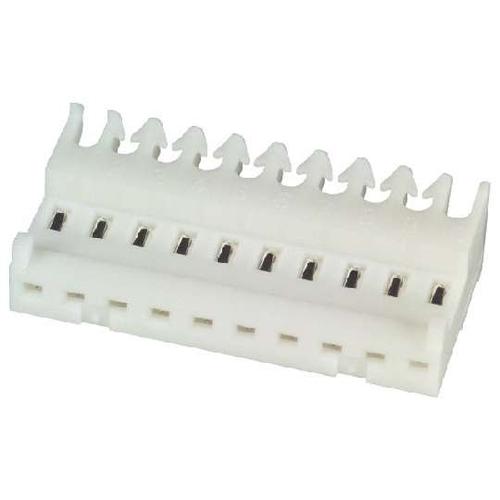

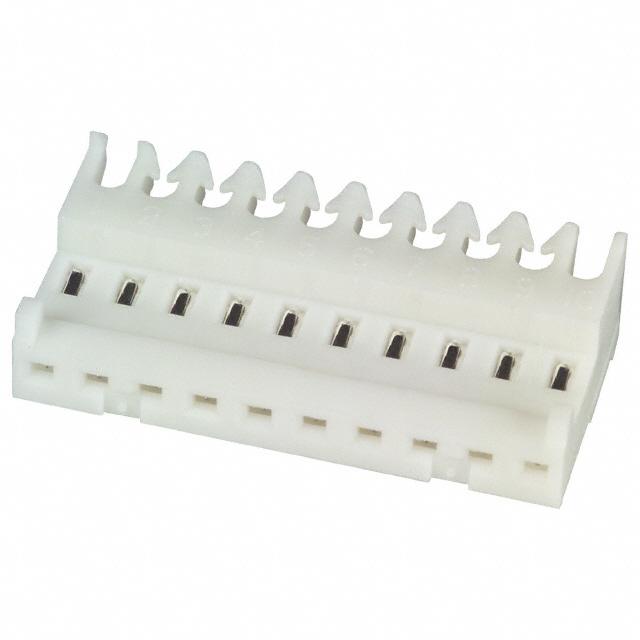

This idc connector 4-644563-0 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This F connector&s;s 10 contacts that are made out of copper alloy and plated with tin over nickel. It has a right angle body orientation. This is a 1-row connector. It has a female type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. 4-644563-0 is housed in white nylon. This product is 25.4 mm long, 7.75 mm tall and 13.21 mm deep. It uses the idt termination method. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece

Chip1Stop:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  4-644563-0  Wire-To-Board Connector, 2.54 mm, 10 Contacts, Receptacle, MTA-100 Series, IDC / IDT, 1 Rows

MASTER:
MTA-100 CONNECTOR ASSEMBLY, 24 AWG, STANDARD

Online Components:
10P MTA100 CONN ASSY F/T 24AWG

Electro Sonic:
10P MTA100 CONN ASSY F/T 24AWG
