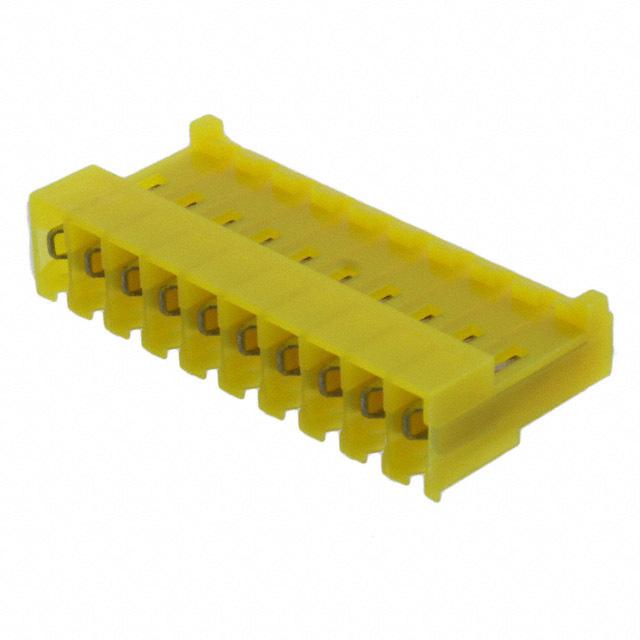

4-644663-0

Conn IDC Connector F 10POS 3.96mm IDT RA Cable Mount

10 Position Rectangular Receptacle Connector IDC Gold 20 AWG

得捷:
CONN RCPT 10POS IDC 20AWG GOLD

贸泽:
Headers & Wire Housings 10P MTA156 CONN ASSY 20AWG LF

艾睿:
Look no further than the idc connector 4-644663-0 header connector from TE Connectivity, a great tool to use when board-to-board interconnects is required. This F connector&s;s 10 contacts that are made out of copper alloy and plated with gold. This is a 1-row connector. It has a female type gender. It has a maximum voltage rating of 600 VAC. Its pitch is 3.96 mm. It has a right angle body orientation. This device has a maximum current rating of 7 A/contact. It uses the idt termination method. This connector has an operating temperature of -55 to 105 °C. This product is 39.62 mm long, 9.02 mm tall and 18.42 mm deep. 4-644663-0 is housed in yellow nylon.

安富利:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount

Chip1Stop:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount

Verical:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount Package

MASTER:
MTA 156 CONNECTOR ASSEMBLY, 20 AWG, STANDARD

Electro Sonic:
10P MTA156 CONN ASSY 20AWG LF
