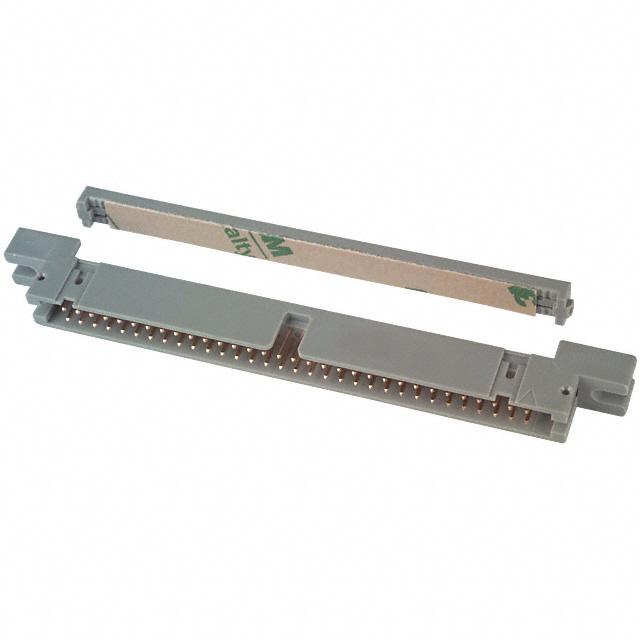

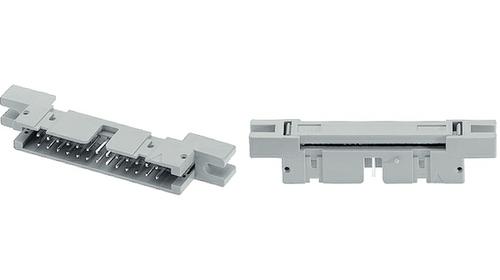

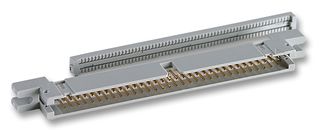

3M 4664-6000 线至板连接器, 带接线片, 4600系列, 64 触点, 插头, 2.54 mm, IDC / IDT, 2 排
The is a 64-way 0.100 x 0.100-inch Wire to Board Connector for 0.050-inch pitch cable, with gold-plated phosphor bronze contacts and IDC/IDT termination. This 4600 series wiremount plug/connector is glass filled polyester PBT insulated, shrouded to protect against physical and chemical pin damage. This wire to board connector has open end cover, military with 3518 polarizing key and centerbump polarization for 64-contacts with mounting flange.
- .
- Grey colour
- .
- Accepts flat cable or discrete wire
- .
- UL94V-0 Flammability rating
- .
- 1A Current rating
- .
- >1 x 10⁹R at 500VDC Insulation resistance
触点数 64
极性 Male
触点电镀 Gold
额定电流 1 A
绝缘电阻 1.00 GΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 64
接触电阻 20.0 mΩ
拔插次数 200
额定电流Max 1 A
额定电压Max 1000 V
额定电压 1000 V
安装方式 Panel
引脚数 64
引脚间距 2.54 mm
长度 106.7 mm
宽度 13.34 mm
高度 8.4 mm
引脚间距 2.54 mm
外壳颜色 Gray
颜色 Gray
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
