4-643816-5

Conn IDC Connector F 15POS 2.54mm IDT RA Cable Mount Bag

15 位置矩形连 插座 连接器 IDC 锡 28AWG

得捷:
CONN RCPT 15POS IDC 28AWG TIN

艾睿:

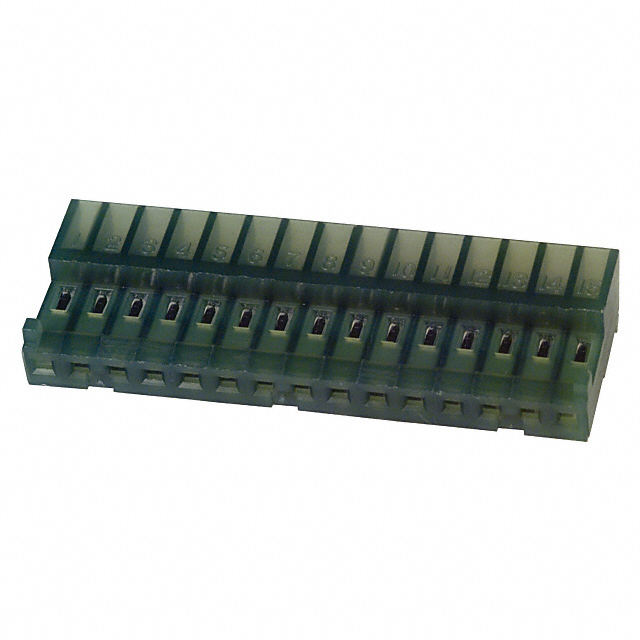

Thanks to TE Connectivity&s;s idc connector 4-643816-5 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This F connector&s;s 15 contacts that are made out of copper alloy and plated with tin over nickel. Its pitch is 2.54 mm. It has a right angle body orientation. It has a female type gender. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. It uses the idt termination method. 4-643816-5 is housed in green nylon. This product is 38.1 mm long, 6.99 mm tall and 13.21 mm deep. This connector has an operating temperature of -55 to 105 °C.

Verical:
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  4-643816-5  15P MTA100 CONN ASSY POL RIB New

MASTER:
MTA 100 CONNECTOR ASSEMBLY, 28 AWG, STANDARD

Electro Sonic:
15P MTA100 CONN ASSY POL RIB
